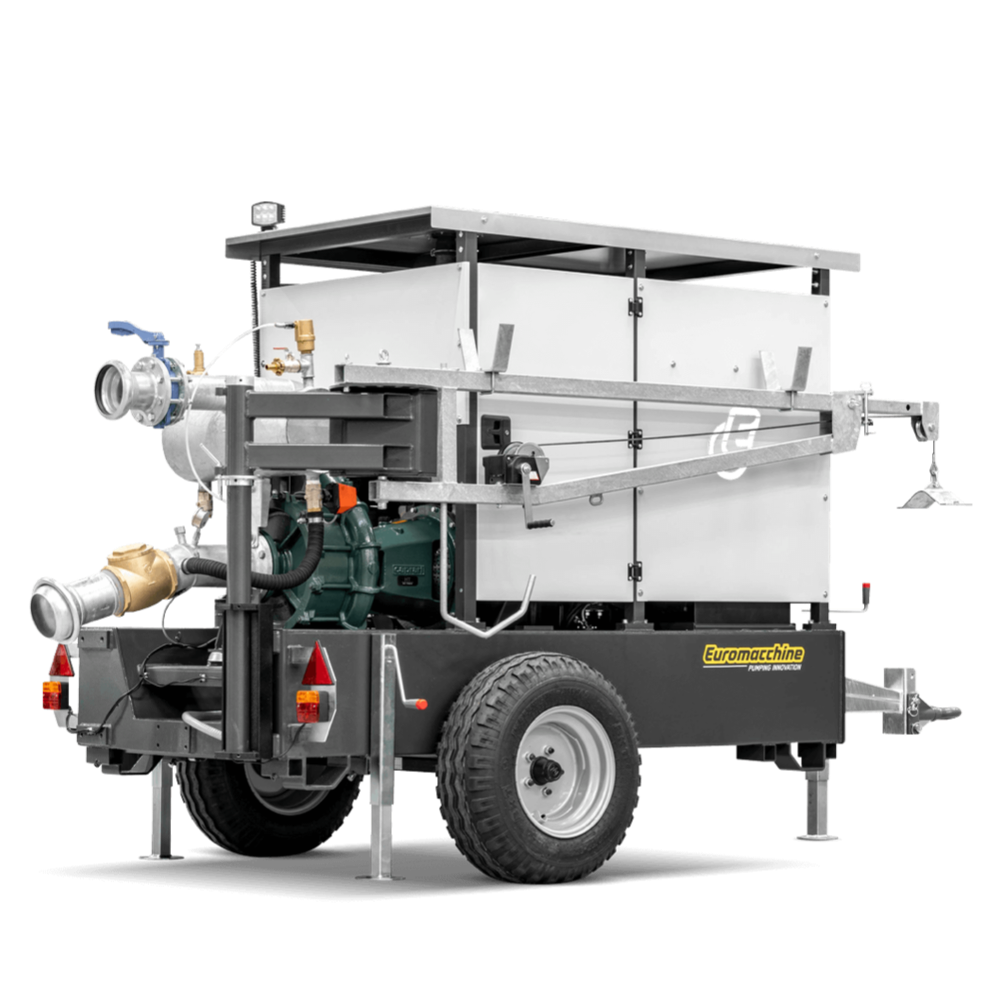

Discover Caprari d-motopompa, the solution built according to your needs!
Caprari diesel pumps are designed to meet the needs of growers and farmers. These solutions are ideal for managing large volumes of water with maximum efficiency, ensuring uniform and consistent irrigation even in the most challenging conditions.
| Model | Pump | Engine | ||||||
|---|---|---|---|---|---|---|---|---|
| Type | Brand | Model | BEP (mc/h @ m) | Max flow (mc/h) | Max head (m) | S x D | Solids | Rated Power kW/hp |
| 3-CN-90/90C | Caprari | MEC MG80-4/3A | 90/90 | 144 | 89 | 100×80 | \ | 52 / 69 @ 1800 |
| 3-CN-90/110C | Caprari | MEC MG80-4/3A | 90/110 | 144 | 89 | 100×80 | \ | 52 / 69 @ 1800 |
| 3-CN-110/90C | Caprari | MEC MG80-4/3A | 110/90 | 144 | 89 | 100×80 | \ | 52 / 69 @ 1800 |
| 3-CN-110/110C | Caprari | MEC MG80-4/3A | 110/110 | 144 | 89 | 100×80 | \ | 69 / 86 @ 1800 |
| 4-CN-150/90C | Caprari | MEC MG100HT/2C | 150/90 | 252 | 86 | 125×100 | \ | 69 / 86 @ 1800 |
| 4-CN-150/110C | Caprari | MEC MG100HT/2C | 150/110 | 252 | 86 | 125×100 | \ | 87 / 116 @ 1800 |
| 4-CN-180/110C | Caprari | MEC MG100HT/2C | 180/110 | 252 | 86 | 125×100 | \ | 121 / 162 @ 1800 |
| 5-CN-210/90 | Caprari | MEC MG125HT/2C | 210/90 | 360 | 91 | 125×125 | \ | 87 / 116 @ 1800 |
| 5-CN-210/110 | Caprari | MEC MG125HT/2C | 210/110 | 360 | 91 | 125×125 | \ | 121 / 162 @ 1800 |
| 5-CN-250/90 | Caprari | MEC MG125HT/2C | 250/90 | 360 | 91 | 125×125 | \ | 110 / 147 @ 1800 |
| 5-CN-250/110 | Caprari | MEC MG125HT/2C | 250/110 | 360 | 91 | 125×125 | \ | 175 / 234 @ 1800 |
Flexibility of use, ease of maintenance, and reliability are the three main features that make Caprari flanged pumps the ideal solution for agricultural irrigation.
The high durability and hydraulic efficiency of up to 89% of our diesel pumps make them one of the best choices for irrigation pumps. Additionally, thanks to well-stocked warehouses, we ensure fast and reliable customer support.
You can choose the priming system that suits you best. We offer a wide range of priming systems to select from, based on your specific needs.

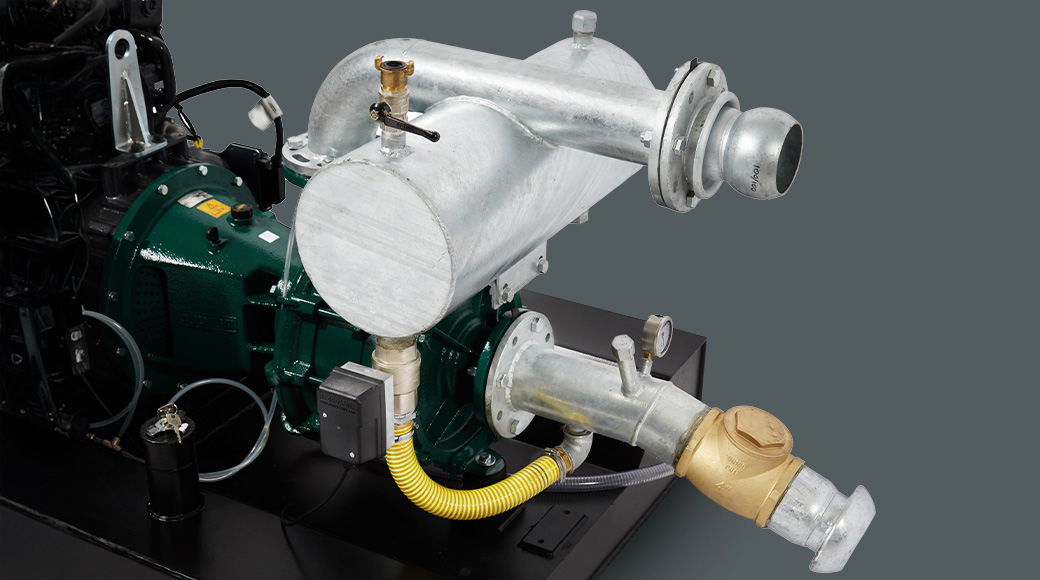

Supertank is one of our priming systems for centrifugal pumps. It allows the pump unit to start with water inside the pump, thus preventing damage. An automatic version is available for those who need to start the machine remotely (only in combination with the CIM 136 or ComAp control units).

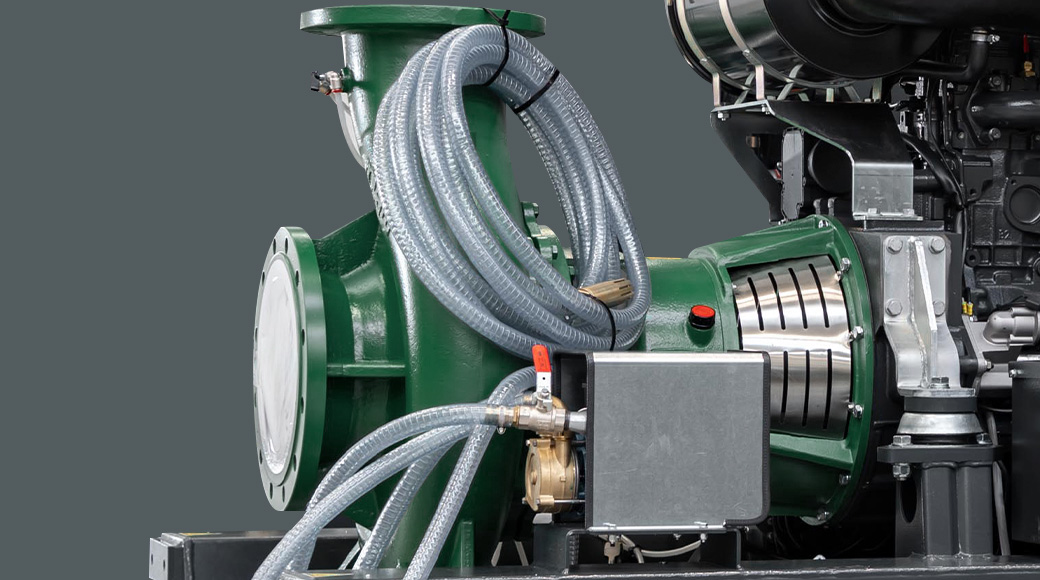

E-self is a self-priming transfer electric pump that makes it easy to prime the pump unit using a 12Vdc electric pump. It easily fills the suction pipe and the pump. This system requires a foot valve to enable priming.

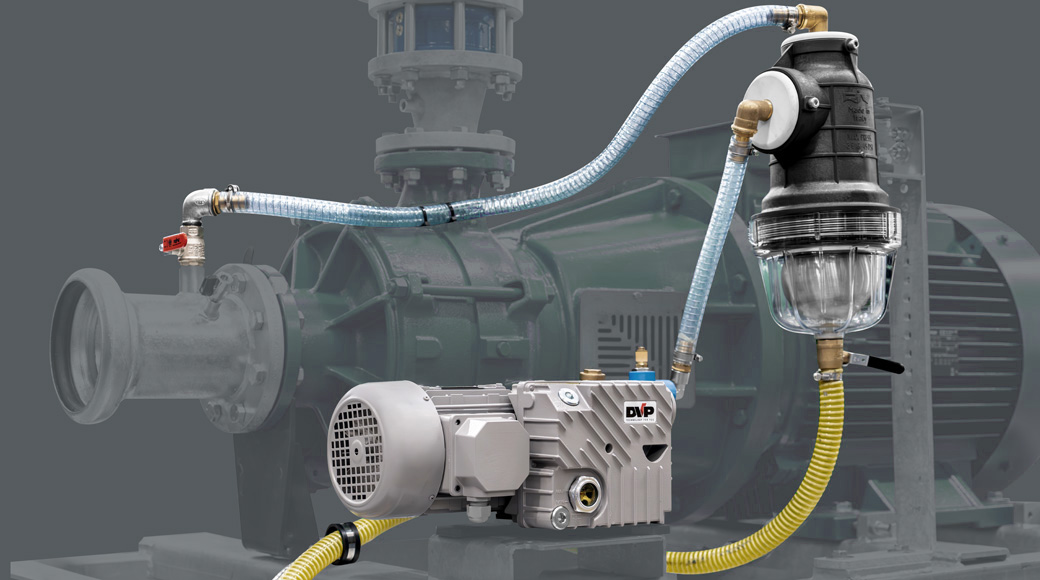

This innovative system assists in priming the pump by suctioning the liquid from the suction pipe using the vacuum created. In this case, the system does not require a foot valve but needs a valve on the discharge pipe to generate the vacuum for suction. The system can be operated manually or in an automatic version. In the latter case, the pump unit starts automatically once filling is complete.

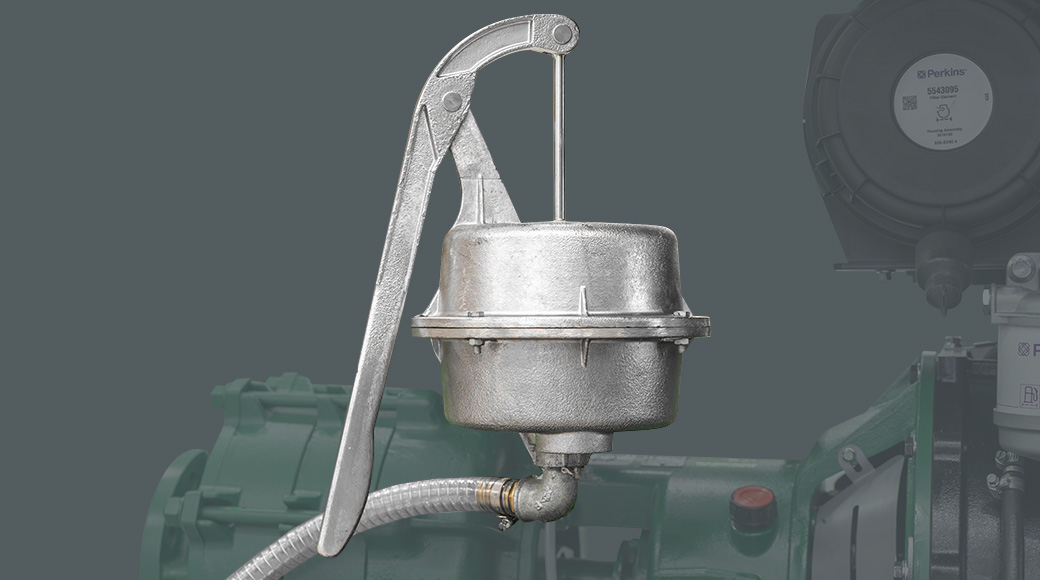

It is used for filling the horizontal pump with water. By operating the appropriate lever, the air is evacuated from the suction pipe, automatically allowing the pump to fill. It is made of aluminum with a rubber diaphragm.
For our machines, we have selected the best control units available on the market. Various models and brands are available to perfectly suit your needs.
The Comap InteliGen 500 is an advanced control unit with a wide range of functions and a high-resolution display. Thanks to the WebSupervisor cloud application and the GPS receiver, the platform provides complete and fast control of your fleet of pump units from any connected mobile device. With WebSupervisor, it is possible to start, stop, monitor, and adjust the settings of the machines from miles away.
Engine speed indicators
Indicators for correct working point
ON/OFF switch
Timer based on operating hours
Absorbed power signals
Pump/motor protection
Event history
Anti-theft protection
CIM 130 is an Elcos control unit for manual and automatic operation via external contact. Without operator intervention, the CIM 130 automatically monitors all its parameters and alarms. Thanks to the actuator, it can perform automatic adjustments to maintain constant irrigation pressure.
Protection activation
Automatic monitoring anomalies
Automatic acceleration and deceleration
Pump protection exclusion
Emergency stop
Timer to start or stop
Oil and battery indicator lights
Electronic water pressure transmitter
The CIM 136 is the Elcos control unit for manual and automatic operation via external contact, equipped with an integrated GSM modem that allows remote control of the pump unit through an app. Without operator intervention, the CIM 136 automatically monitors all its parameters and alarms. Thanks to the actuator, it can perform automatic adjustments to maintain constant irrigation pressure.
Protection activation
Automatic monitoring anomalies
Automatic acceleration and deceleration
Electronic water pressure transmitter
Emergency stop
Timer to start or stop
Pump protection exclusion
GSM modem for remote control
The Elcos local control unit is the most widely used because it provides all the basic controls and automatically monitors all its parameters and alarms without any operator adjustments.
Hour meter and tachometer
Timer
Emergency stop
Oil and pump water pressure gauge
Protection activation
