D-motopompa Cornell EM

D-motopompa Cornell EM

High-performance diesel pumps and customized solutions for every need.

D-motopompa Cornell EM
Max Flow
Max Flow
1180 m3/h
Max Pressure
Max Pressure
5.6 bar
Solids handling
Solids handling
102 mm
RELIABILITY

CUSTOMIZED SOLUTION FOR EVERY TYPE OF FLOW

Cornell diesel pumps can be used during major natural disasters such as floods and inundations, when there is a need to remove large volumes of water with debris from basements and homes.

    INFO AND CURVES

    TECHNICAL SPECIFICATIONS

    Model Pump Trailer
    Type Max Flow [m³/h] Max pressure [m] Impeller style Solids passagge [mm] S x D [mm] Power rating [kW] Max mass [kg] Axles
    D100T 190 20 Enclosed 76 100×100 11 1500 Mono
    D150T8 510 24 Enclosed 76 150×150 19 1500 Mono
    D150T 600 56 Enclosed 76 150×150 55 2700 Double
    D200T11 800 37 Enclosed 76 200×200 55 3500 Double
    D200T 1040 53 Enclosed 76 250×200 90 3500 Double
    D300T 1180 40 Enclosed 102 350×300 90 3500 Double
    EXCLUSIVE ADVANTAGES

    HIGHLIGHTS

    Thanks to numerous unique features, such as Cycloseal, Run-Dry® and Redi-Prime®, Cornell pumps are able to handle the most challenging applications. These features, combined with high efficiency, are the reasons why Cornell is the benchmark in the water transfer pump industry.

      • Cornell_Pump

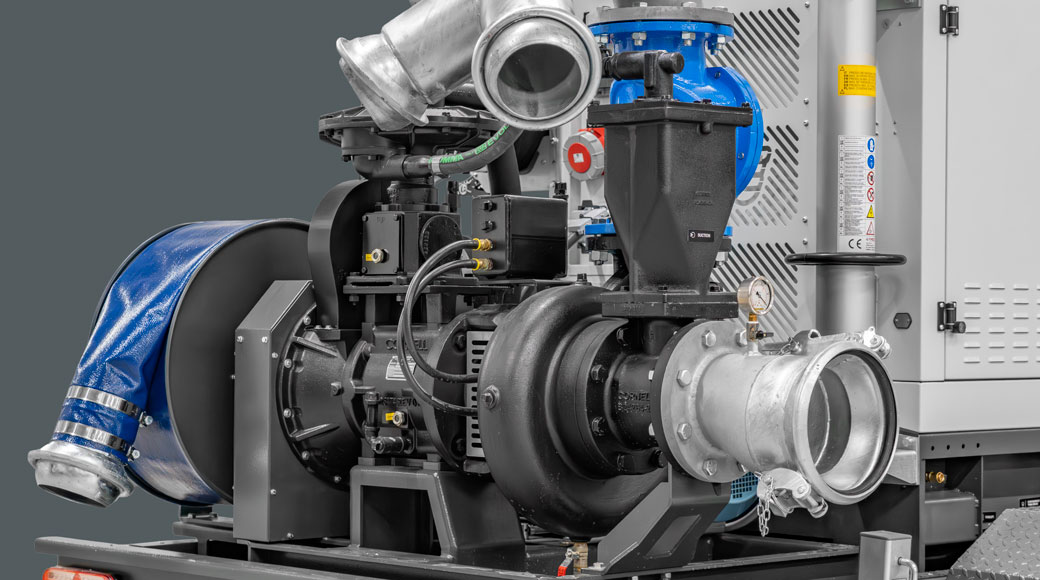

        Cornell pumps

        STANDARD
        Cornell pumps are used in a wide range of applications and are designed to deliver industry-leading efficiency. Thanks to low fuel consumption and reduced power requirements, significant energy savings can be achieved. Cornell pumps also stand out for unique features such as Redi Prime, which ensures automatic priming and re-priming of the pump.
      • run-dry-tm

        Run Dry™

        STANDARD
        Seal lubrication and cooling system that prevents dry running.
      • Redi_Prime_Cornell

        Redi Prime®

        OPTIONAL
        A patented, fully automated system for rapid priming or re-priming without constant monitoring. With oversized suctions, they deliver high flow, reduced friction losses, and enhanced suction lift, making them easily handle large solids and air/liquid mixtures. Redi-Prime also maintains premium hydraulic efficiency to reduce energy consumption.
      • Irrigazione-cornell-Cycloseal

        Cycloseal®

        STANDARD
        Cornell’s manure pumps come equipped with the patented Cycloseal sealing system, which leverages cyclonic action to extract solids and abrasive substances from the seal area while simultaneously purging air and gas pockets. This groundbreaking technology extends the lifespan of the seal.
      • energy-efficiency

        Energy Efficiency

        STANDARD
        Cornell Pumps are engineered to provide superior efficiency, surpassing industry standards. Depending on the operational conditions, such as operating hours, fuel type, and horsepower needed, you can save over $3,000 annually in energy costs. With over 35 models available, Cornell offers a wide range of IRRIGATION pumps that deliver best-in-class efficiency and meet or exceed optimum standards for centrifugal pumps.
      • materials-of-construction

        Materials of construction

        STANDARD
        Cornell irrigation pumps are fabricated with highquality materials, including cast iron, bronze fitted, or all-iron construction, to ensure longevity and durability. Optional materials are also available for applications that require resistance to abrasive or caustic substances. To further enhance performance and longevity, these pumps are designed with balanced impellers, heavy-duty shafts, replaceable shaft sleeves, and wear rings as standard features.
      • Pair_Spotlight

        Small lighting tower

        OPTIONAL
        To ensure optimal visibility during rescue operations, the supply can be completed with a pair of spotlights mounted on a 1-meter-high pole.
      • Emergenza-self-priming-casone

        Tool box

        OPTIONAL
        The tool box allows for neat and secure storage of everything needed: from valves to hoses, up to an extra diesel canister. An indispensable accessory to tackle any operation with maximum efficiency.
      MUST-HAVES

      MAIN COMPONENTS AND ACCESSORIES

      Efficient, durable, and innovative: Cornell EM pumps deliver outstanding performance even in the most demanding applications, where strength and versatility truly make the difference.

        • Canopy

          Soundproof Cabin

          OPTIONAL
          A version with a soundproof cabin is available, offering 70 d(B)A at a distance of 7 meters. It is made of galvanized, press-bent, and electro-welded steel, painted with epoxy powders, and lined internally with Class 1 sound-absorbing material.
        • Trailer

          Approved road trailer

          OPTIONAL
          Lampo Emergency is completed with an approved road trailer, available in single-axle or double-axle versions, with 2 or 4 side parking jacks, a jockey wheel mounted on the drawbar for manual movement, a spare wheel with cover, multifunction road signal lighting system, and side reflectors.
        • Discharge_Holder

          Hose holder

          OPTIONAL
          Supplied as standard, the discharge hose is always ready for use thanks to the dedicated hose holder, which ensures speed and convenience during every operation.
        • Pipe_Holder

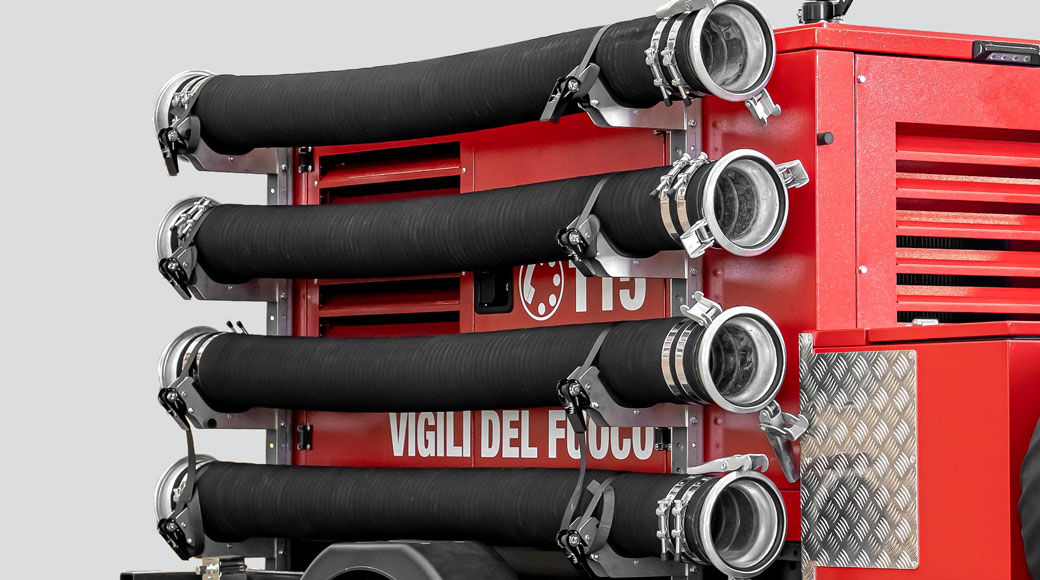

          Pipe holder

          STANDARD
          Thanks to the integrated pipe holders, the Lampo always keeps the pipes readily available directly on the vehicle. An essential detail in case of emergencies, when speed is everything.
        • Internal_External_Lights

          Internal and external lights

          STANDARD
          The internal and external lights improve visibility and operational efficiency: the internal lights facilitate work inside the machine cabin, while the external lights ensure safe maneuvers even in total darkness or blackout conditions.
        • Accessories

          Complementary accessories

          OPTIONAL
          The supply can include several useful accessories to respond promptly to emergency situations, such as: powder fire extinguisher, 20-liter diesel can, toolbox complete with accessories, safety battery disconnect switch to preserve the charge, shovel, and pickaxe.
        • Battery_Charger

          Battery charger maintenance socket

          STANDARD
          An advanced microprocessor-controlled battery charger with automatic temperature compensation and unbeatable performance for lead-acid batteries from 1.2 to 110 Ah. This charger is capable of solving numerous battery-related issues and is ideal for the most demanding applications.
        FOR YOUR PUMP

        PRIMING SYSTEMS

        You can choose the priming system that suits you best. We offer a wide range of priming systems to select from, based on your specific needs.

          • Redi Prime Cornell

            Redi Prime

            AUTOMATIC

            Cornell Redi-Prime® is a patented, fully automated system for rapid priming or re-priming without constant monitoring. Redi-Prime also maintains premium hydraulic efficiency to reduce energy consumption. This priming system was designed utilizing a diaphragm vacuum pump to prevent water carry-over and contamination.

          THE BRAIN OF OUR MACHINES

          AVAILABLE CONTROL UNITS

          For our machines, we have selected the best control units available on the market. Various models and brands are available to perfectly suit your needs.
