Electric pumps

E-Motopompa Cornell Size xl

E-Motopompa Cornell

Electric pumping stations with Cornell pumps are high-efficiency products with IE4 motors. They ensure optimal performance and low energy consumption.

E-Motopompa Cornell
Max Flow
Max Flow
1200 m3/h
Max Pressure
Max Pressure
20 bar
Max motor power
Max motor power
355 kW
RELIABILITY

CUSTOMIZED SOLUTION FOR EVERY TYPE OF FLOW

Thanks to the wide range of Cornell pumps for clean water, we can offer numerous pump combinations to meet your irrigation needs. The Cornell brand guarantees quality and reliability to always provide you with the right product.

    INFO AND CURVES

    TECHNICAL SPECIFICATIONS

    Model Pump WEG Motor
    Type Brand Model Working point (mc/h @ m) Efficiency (%) Consumption (kW) NPSHr (m) S x D (mm) Speed (Rpm) with VFD Rated Power (kW)
    E6-CN-600/40 Cornell 6RB 600 @ 40 89 74 <5 250×150 1650 90 kW – 4P – IE4
    E6-CN-600/75 Cornell 6HH 600 @ 75 86 142 <5 200×150 1760 160 kW – 4P – IE4
    E6-CN-600/90 Cornell 6HH 600 @ 90 84 173 <5 200×150 1900 200 kW – 4P – IE4
    E6-CN-600/110 Cornell 6822MX 600 @ 110 76 239 <5 200×150 1780 315 kW – 4P – IE4
    E10-CN-800/40 Cornell 10RB 800 @ 40 84 116 <5 250×250 1700 160 kW – 4P – IE4
    E8-CN-800/60 Cornell 8H 800 @ 60 88 148 <5 250×200 1760 200 kW – 4P – IE4
    E8-CN-800/75 Cornell 8NHTH 800 @ 75 81 200 <5 250×200 1820 250 kW – 4P – IE4
    E8-CN-800/90 Cornell 8NHG19 800 @ 90 81 273 <5 250×200 1700 315 kW – 4P – IE4
    E8-CN-800/110 Cornell 8NHG19 800 @ 110 79 301 <5 250×200 1800 355 kW – 4P – IE4
    EXCLUSIVE ADVANTAGES

    HIGHLIGHTS

    Cornell has been manufacturing pumps for agriculture since 1946. Over the years, engineers have continuously improved their design and functionality. Cornell pumps feature unique characteristics such as a hydraulic balance line and a double volute.

      • double-volute

        Double volute

        STANDARD
        The double volute system effectively balances the forces within the pump to reduce radial load, deflection, and shaft fatigue. This eliminates shaft failures and extends the lifespan of mechanical seals, wear rings, and bearings.
      • hydraulic-balance-line

        Hydraulic balance line

        STANDARD
        The external hydraulic balance line equalizes pressure between the impeller hub area and the pump suction to reduce axial load on the impeller, shaft, and bearings.
      • run-dry-tm

        Run Dry™

        OPTIONAL
        Seal lubrication and cooling system that prevents dry running.

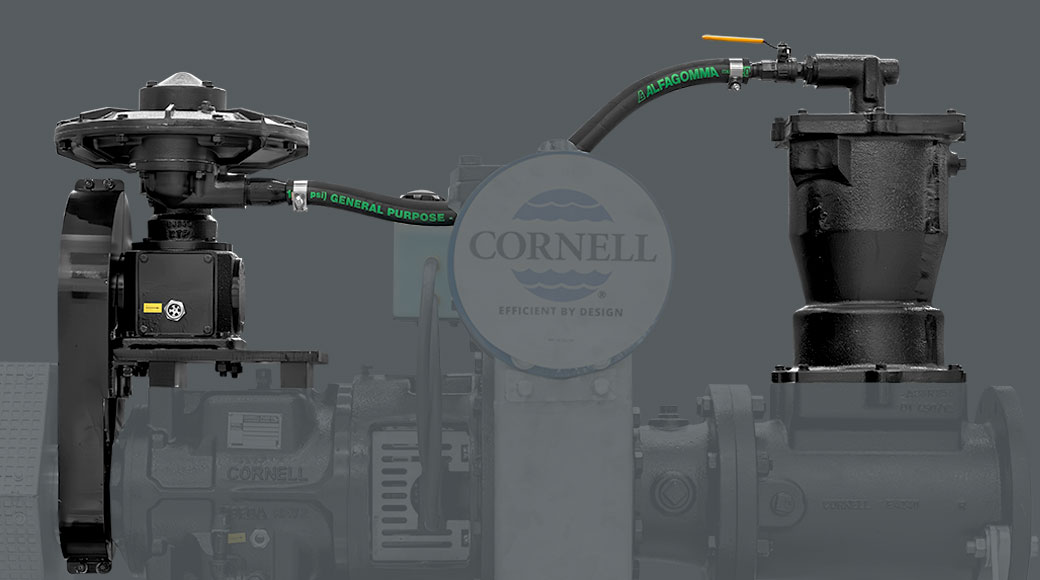

      • Redi_Prime_Cornell

        Redi Prime®

        OPTIONAL
        Fully automatic priming and re-priming of the pump.
      • energy-efficiency

        Energy Efficiency

        Cornell Pumps are engineered to provide superior efficiency, surpassing industry standards. Depending on the operational conditions, such as operating hours, fuel type, and horsepower needed, you can save over $3,000 annually in energy costs. With over 35 models available, Cornell offers a wide range of IRRIGATION pumps that deliver best-in-class efficiency and meet or exceed optimum standards for centrifugal pumps.
      • materials-of-construction

        Materials of construction

        Cornell irrigation pumps are fabricated with highquality materials, including cast iron, bronze fitted, or all-iron construction, to ensure longevity and durability. Optional materials are also available for applications that require resistance to abrasive or caustic substances. To further enhance performance and longevity, these pumps are designed with balanced impellers, heavy-duty shafts, replaceable shaft sleeves, and wear rings as standard features.
      • Isolated-B

        Electrical panel in isolated configuration

        OPTIONAL
        We offer the possibility to install a remote electrical panel, positioned in a separate unit from the pumping station and connected to it only through the starting electrical cables.
      • On-Board-B

        Onboard Electrical Panel

        We offer the option of an onboard electrical panel, installed on the same base frame as the pumping station, ensuring a more compact and less bulky design.
      MUST-HAVES

      MAIN COMPONENTS AND ACCESSORIES

      The high durability and hydraulic efficiency of up to 89% of our electric pumping station make them one of the best choices for irrigation pumps. Additionally, thanks to well-stocked warehouses, we ensure fast and reliable customer support.

        • Frame

          Frame

          STANDARD
          Structural base frame in hot-dip galvanized carbon steel and electrically welded.
        • Fixed-discharge

          Fixed Discharge set on board

          OPTIONAL
          Our electric pumping stations can be equipped with a fixed discharge set on board, complete with sensors and valves, ensuring a more compact and less bulky design.
        • Flow-meter

          Flow Meter

          OPTIONAL
          Flanged electromagnetic flow meter for all applications, equipped with a data logger and Bluetooth connection for maximum versatility. This flow meter uses Faraday’s principle to measure the liquid velocity and convert it into a signal proportional to the flow rate. Among its advantages are high accuracy, which does not exceed ±0.5% of the measured value under steady conditions, complete insensitivity to fluid viscosity, and almost negligible pressure losses.
        • Check-valve

          Tilted disc check valve

          OPTIONAL
          The tilted disc check valve is the ideal solution for applications with clear or wastewater. It can be installed both vertically and horizontally, always ensuring excellent sealing thanks to the rubberized disc. Its unique design allows for flow without pressure loss, making it perfect for this type of application.
        • Slow-Trailer_W

          Trailer

          OPTIONAL
          Single-axle agricultural trailer for machine handling, equipped with a drawbar with various hitch options available.
        • Grids_W

          Lateral protection grids

          OPTIONAL
          A version with protective grids to safeguard the electric motor is available, made of galvanized and press-bent steel.
        FOR YOUR PUMP

        PRIMING SYSTEMS

        You can choose the priming system that suits you best. We offer a wide range of priming systems to select from, based on your specific needs.

          • E-Vacuum 12 V CORNELL

            E-Vacuum 400 V

            MANUALor
            AUTOMATIC

            This innovative system assists in priming the pump by suctioning the liquid from the suction pipe using the vacuum created. In this case, the system does not require a foot valve but needs a valve on the discharge pipe to generate the vacuum for suction. The system can be operated manually or in an automatic version. In the latter case, the electric pump unit starts automatically once filling is complete.

          • Redi Prime Cornell

            Redi Prime

            AUTOMATIC

            Cornell Redi-Prime® is a patented, fully automated system for rapid priming or re-priming without constant monitoring. Redi-Prime also maintains premium hydraulic efficiency to reduce energy consumption. This priming system was designed utilizing a diaphragm vacuum pump to prevent water carry-over and contamination.

          • E-Self Cornell

            E-SELF 230 V

            MANUAL

            E-self is a self-priming transfer electric pump that makes it easy to prime the pump unit using a 230Vac electric pump. It easily fills the suction pipe and the pump. This system requires a foot valve to enable priming.

          100% CUSTOMIZABLE

          VERSIONS

          A
          A Fixed
          Fixed
          B
          B Fork lift
          Fork lift
          C
          C Lifting hook
          Lifting hook
          D
          D Slow trailer
          Slow trailer
          E
          E Fast trailer
          Fast trailer
          100% CUSTOMIZABLE

          CONFIGURATION

          1
          1 Open
          Open
          2
          2 Roof
          Roof
          3
          3 Grid
          Grid
          4
          4 Silent
          Silent
          5
          5 Super silent
          Super silent
          THE BRAIN OF OUR MACHINES

          AVAILABLE CONTROL UNITS

          We offer our customers the option to pair our pumping stations with electrical panels equipped with inverters to ensure greater protection for the entire system.

          Inverter with ComAp
          Inverter
