Versatility, reliability, and ease of use are the features that make Lampo the ideal solution for meeting every pumping need in the agricultural sector.

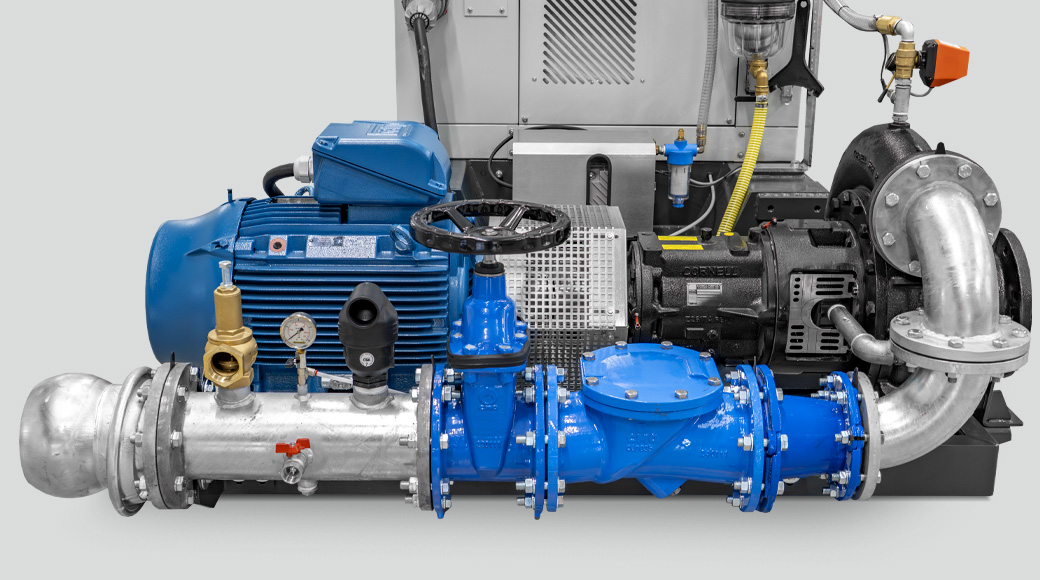

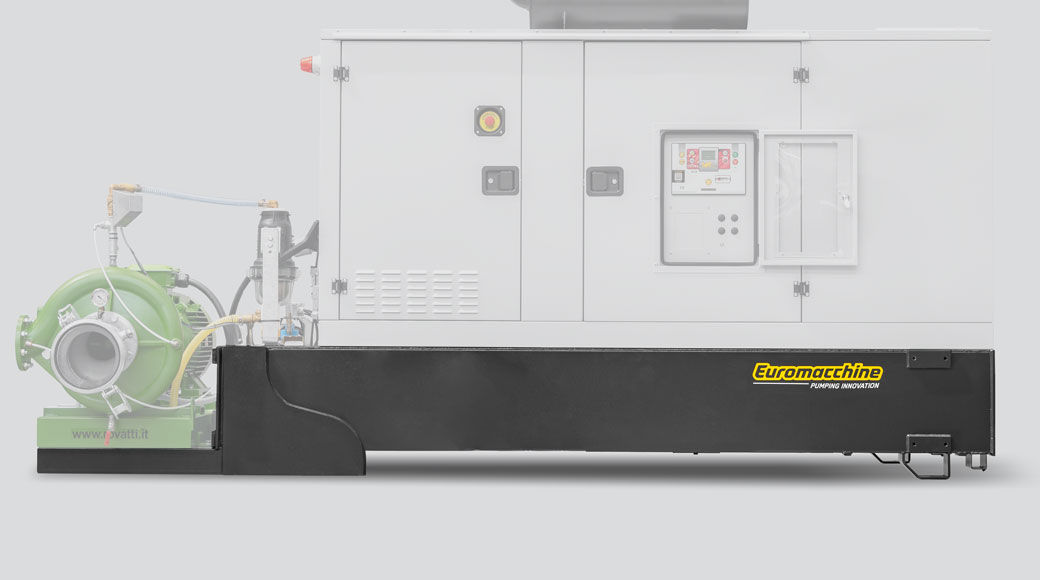

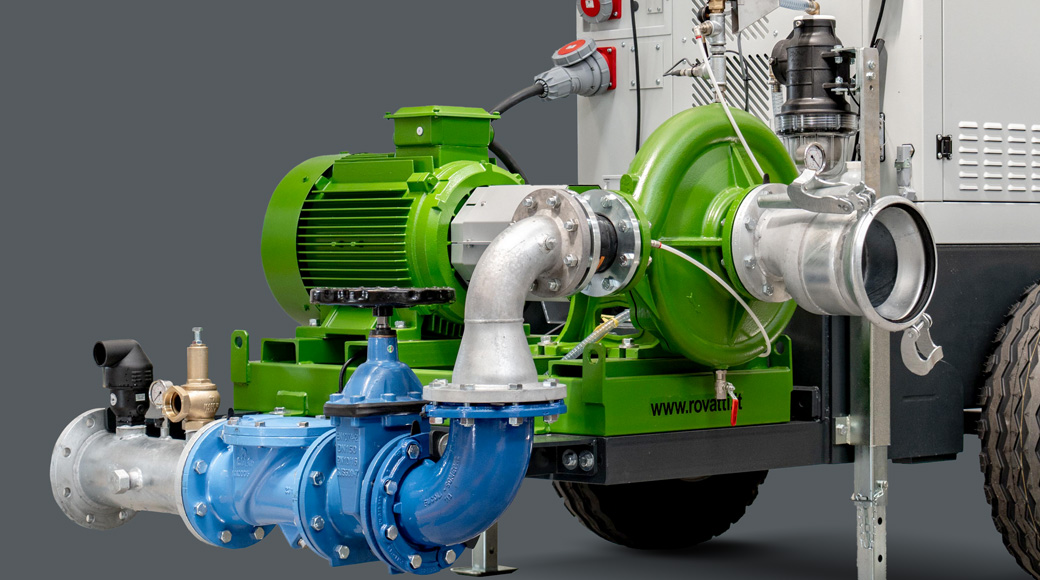

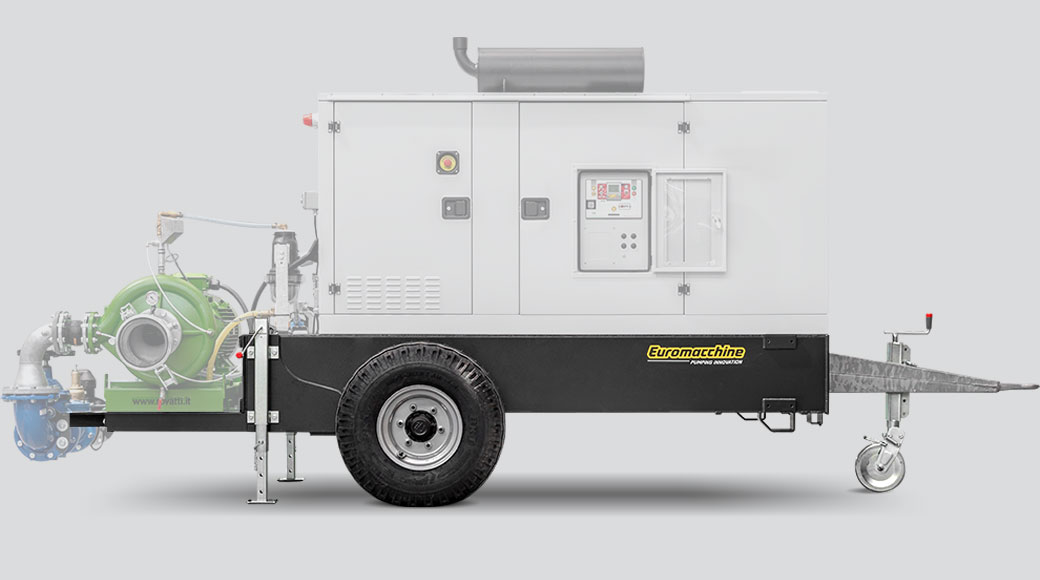

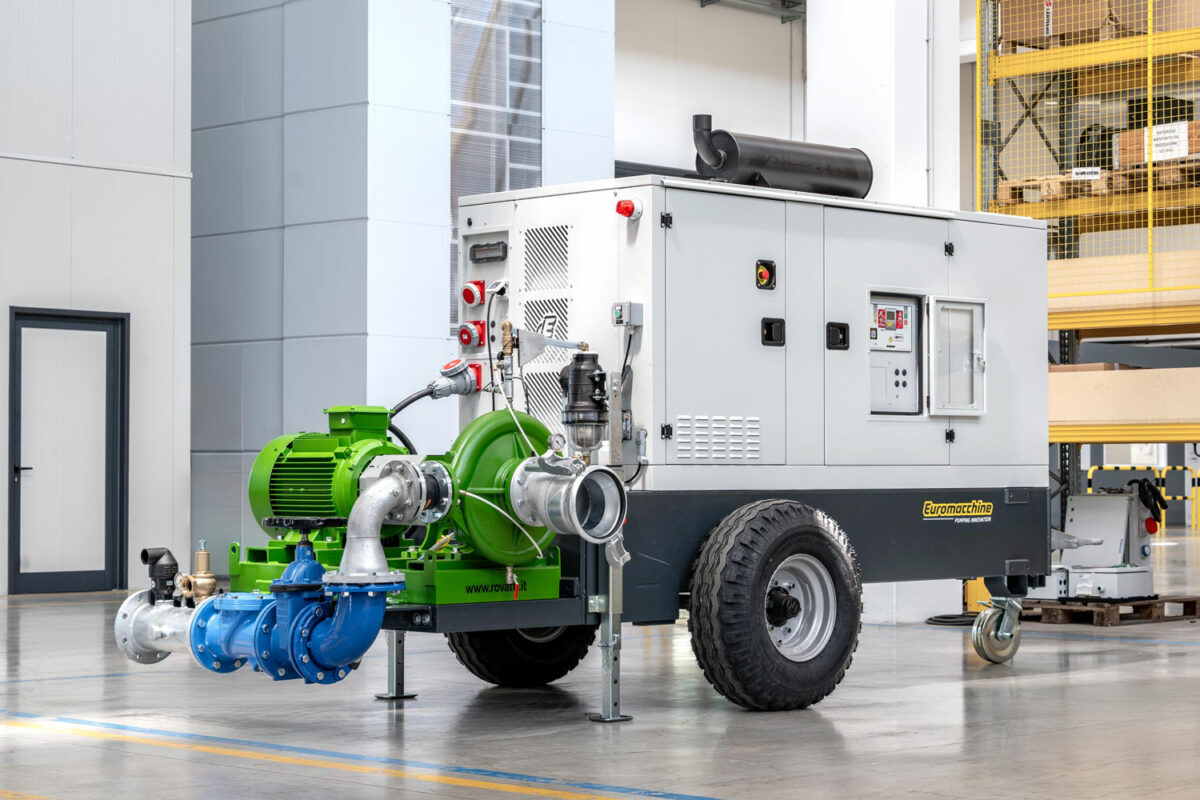

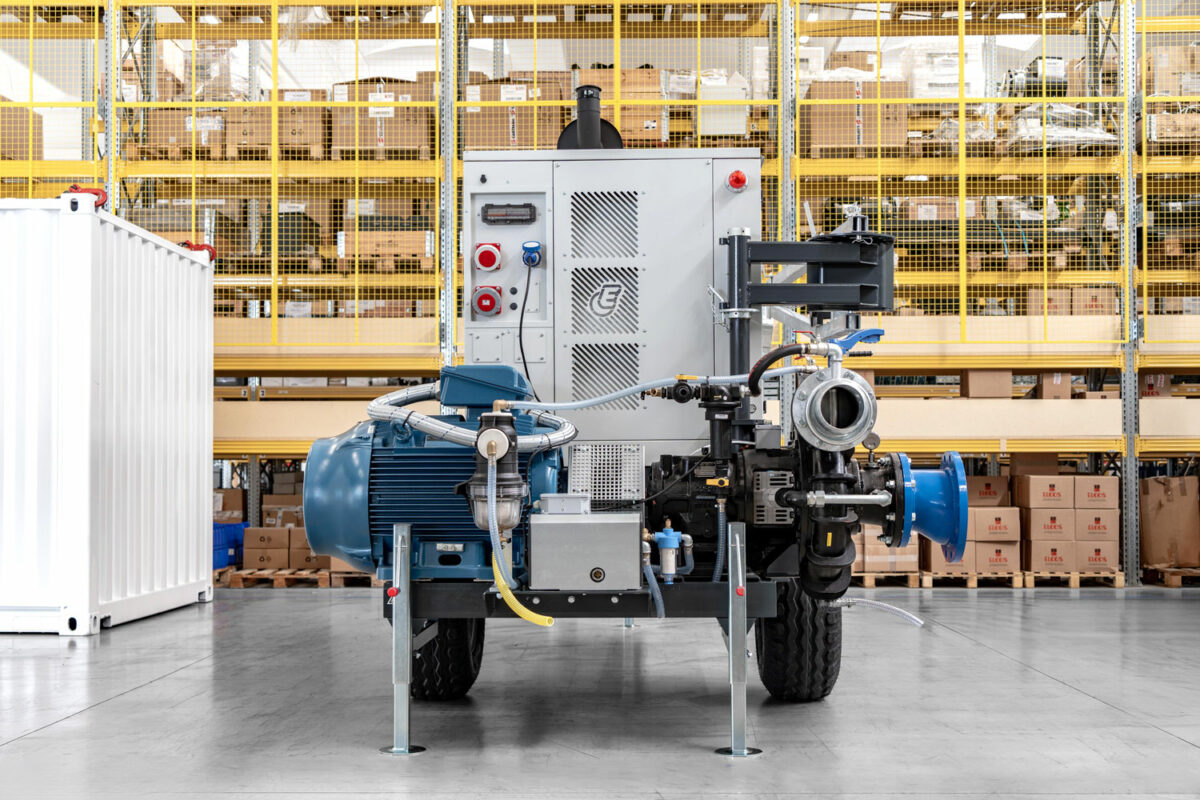

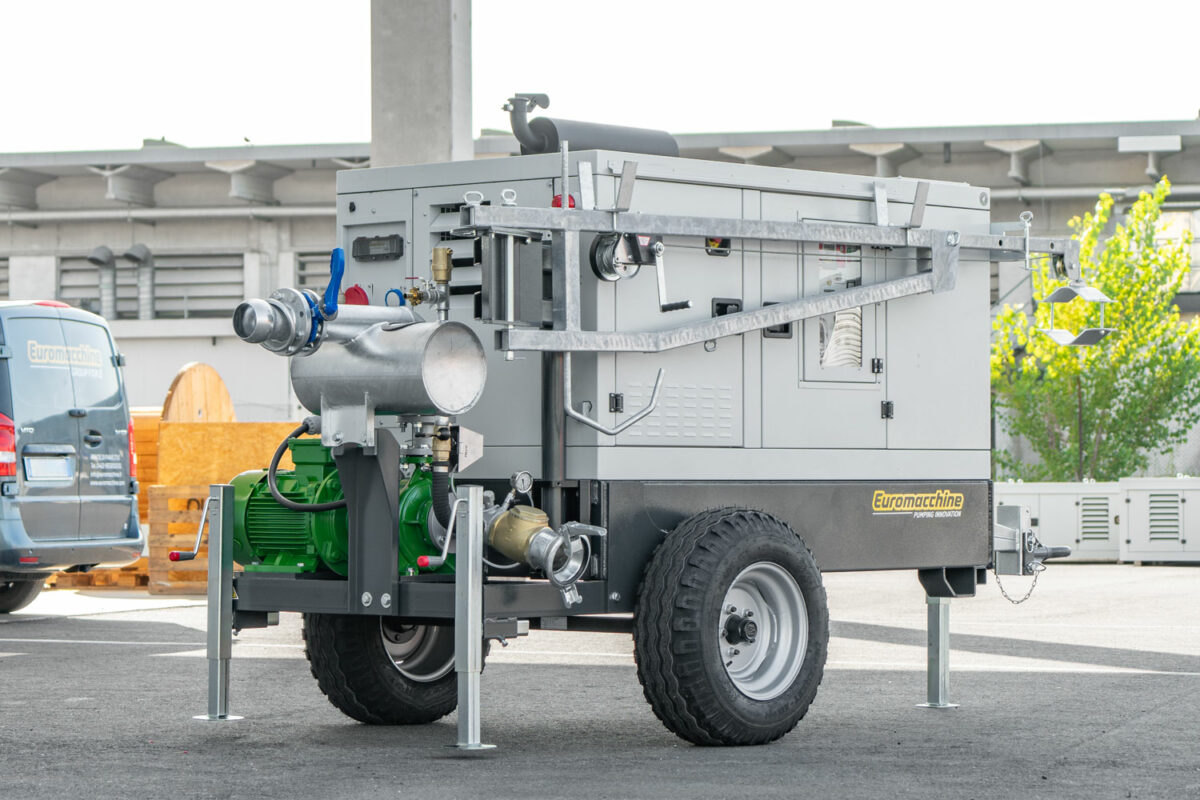

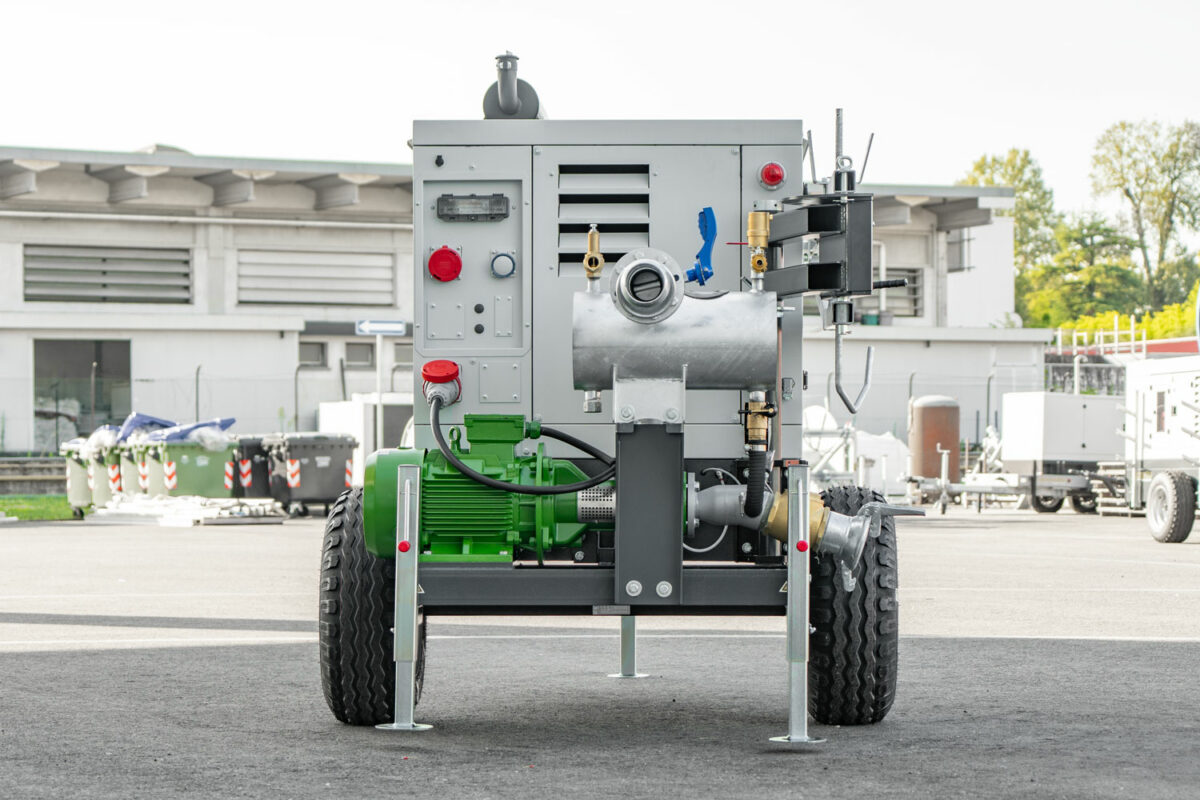

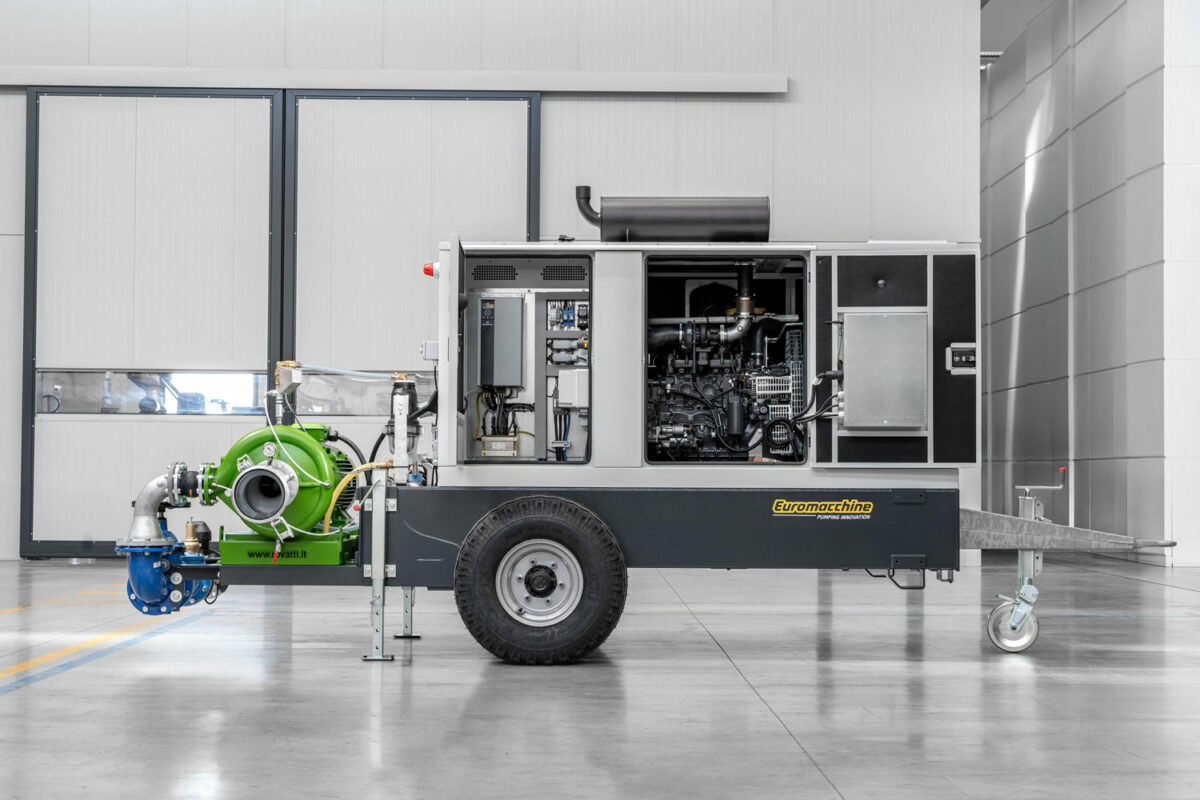

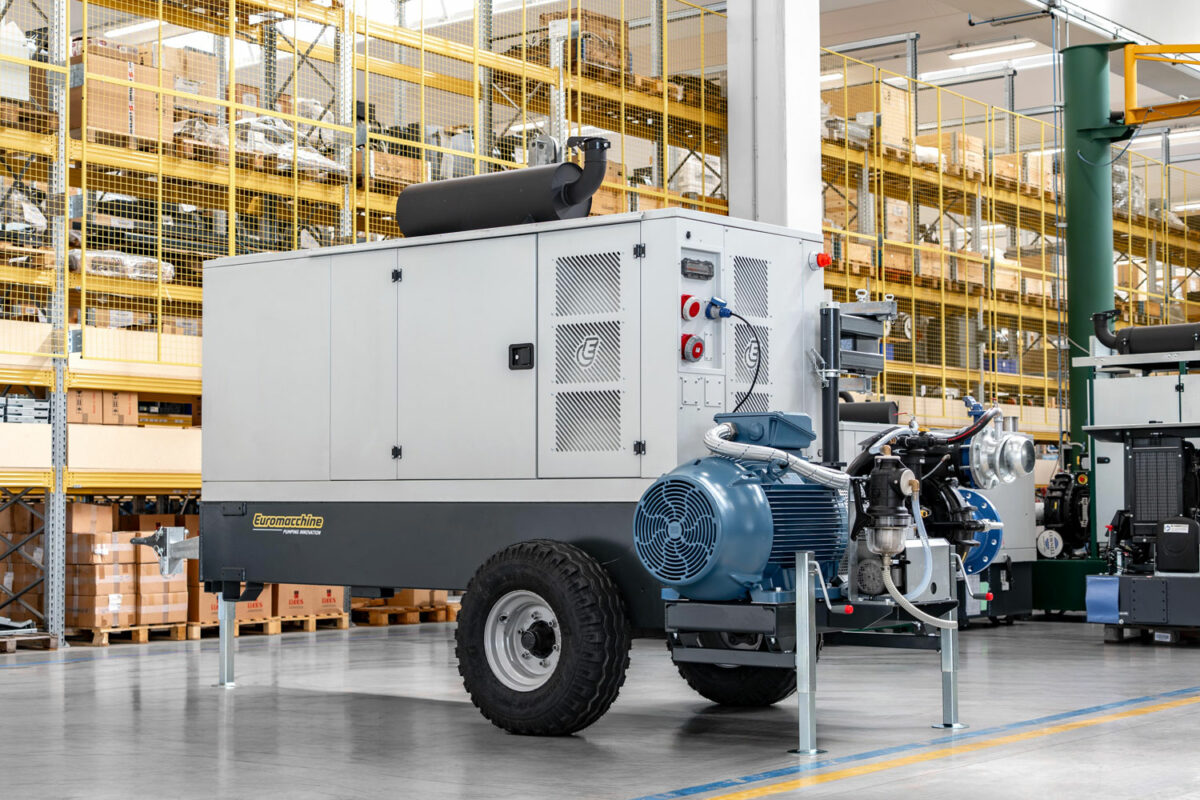

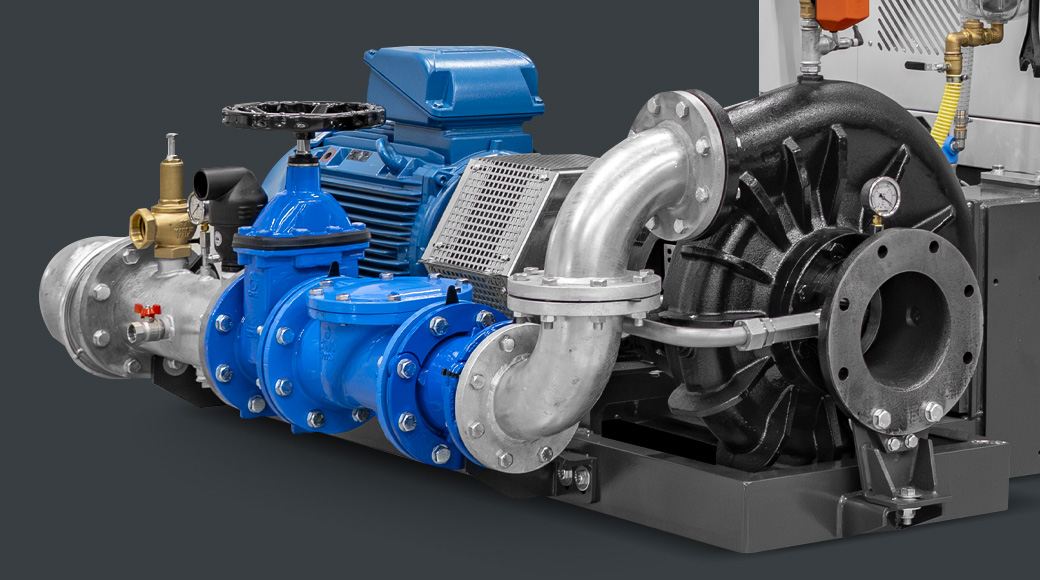

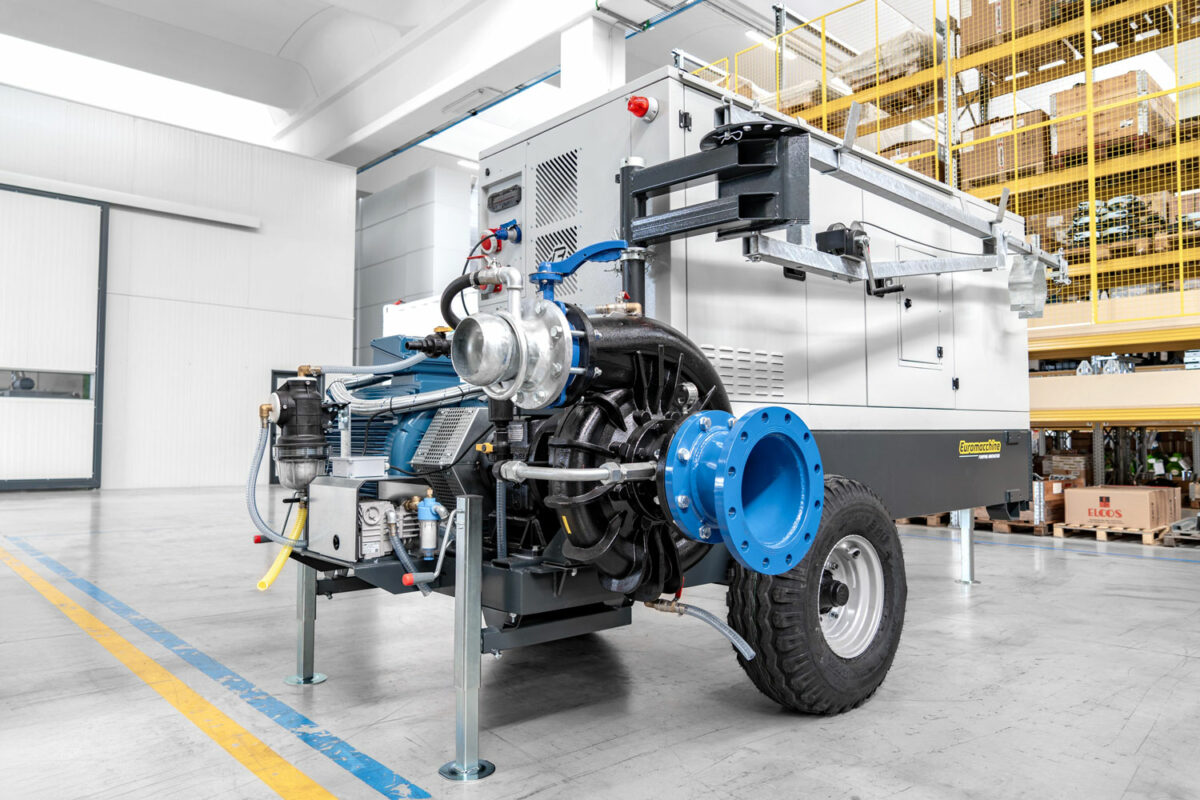

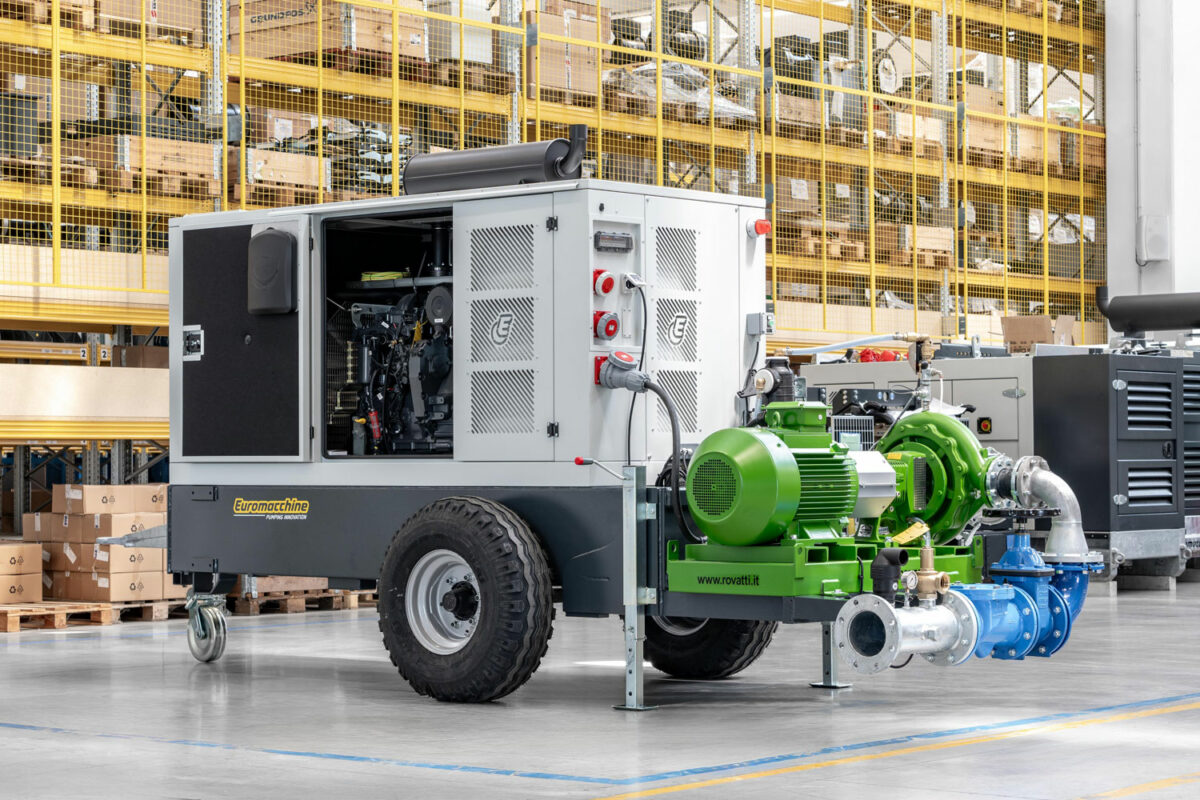

The patented multifunctional LAMPO AG unit is designed to operate simultaneously as both a gen set and pump unit, offering the ability to adjust flow rates and pressures thanks to the integrated VFD. Supplied as standard in the Supersilent version, the LAMPO AG is available in a wide range of power outputs, from 13 to 250 kVA. Equipped with a horizontal centrifugal pump, this system combines the advantages of the VFD which ensures efficiency and operational flexibility, with those of a powerful and reliable gen set, ideal for meeting a variety of application needs.
| Model | GEN SET | HORIZONTAL ELECTRIC PUMP | VFD | ||||
|---|---|---|---|---|---|---|---|
| Type | Gen Set Power (kVA) | Working Point (mc/h @ m) | Brand | Horizontal Pump | Rated Power (kW) | VFD Brand | VFD Power (kW) |
| LA-HOR-55/115 | 60 | 55 / 115 | Rovatti | ME40K80-60/3P | 30 kW – 2P – 2900 Rpm | Danfoss FC101 | 30 |
| LA-HOR-70/110 | 60 | 70 / 110 | Rovatti | ME50K80-90/3P | 37 kW – 2P – 2900 Rpm | Danfoss FC101 | 37 |
| LA-HOR-100/60 | 60 | 100 / 60 | Rovatti | MN40E65-200 | 30 kW – 2P – 2900 Rpm | Danfoss FC101 | 30 |
| LA-HOR-100/115 | 100 | 100 / 115 | Rovatti | ME75K100-120/2P | 55 kW – 2P – 2900 Rpm | Danfoss FC101 | 55 |
| LA-HOR-150/45 | 60 | 150 / 45 | Rovatti | MN50E80-200 | 37 kW – 2P – 2900 Rpm | Danfoss FC101 | 37 |
| LA-HOR-150/70 | 100 | 150 / 70 | Rovatti | ME75K100-160/2P | 55 kW – 2P – 2900 Rpm | Danfoss FC101 | 55 |
| LA-HOR-150/110 | 125 | 150 / 110 | Rovatti | ME100K100-160/2P | 75 kW – 2P – 2900 Rpm | Danfoss FC101 | 75 |
| LA-HOR-210/50 | 100 | 210/50 | Rovatti/Cornell | SN4F100-400F / 4RB | 45 kW – 2P – 2900 Rpm | Danfoss FC101 | 45 |
| LA-HOR-210/110 | 150 | 210/110 | Rovatti | S4K150/2E | 110 kW – 2P – 2900 Rpm | Danfoss FC202 | 110 |
| LA-HOR-250/50 | 100 | 250/50 | Rovatti/Cornell | SN4F100-400E / 4HH | 55 kW – 2P – 2900 Rpm | Danfoss FC101 | 55 |
| LA-HOR-250/110 | 200 | 250/110 | Rovatti | S4K150/2E | 132 kW – 2P – 2900 Rpm | Danfoss FC202 | 132 |
| LA-HOR-300/50 | 125 | 300/50 | Cornell | SN4E125-400F / 5HH | 75 kW – 2P – 2900 Rpm | Danfoss FC101 | 75 |
| LA-HOR-300/75 | 125 | 300 / 75 | Cornell | 5HH | 75 kW – 2P – 2900 Rpm | Danfoss FC101 | 75 |
| LA-HOR-400/50 | 150 | 400/50 | Cornell | SN4E150-400F / 5HH | 90 kW – 2P – 2900 Rpm | Danfoss FC101 | 90 |
| LA-HOR-400/90 | 200 | 400 / 90 | Cornell | 5HH | 132 kW – 2P – 2900 Rpm | Danfoss FC202 | 132 |
| LA-HOR-600/40 | 150 | 600 / 40 | Cornell | 6RB | 90 kW – 2P – 2900 Rpm | Danfoss FC101 | 90 |
| LA-HOR-600/60 | 200 | 600 / 60 | Cornell | 6HH | 132 kW – 2P – 2900 Rpm | Danfoss FC202 | 132 |

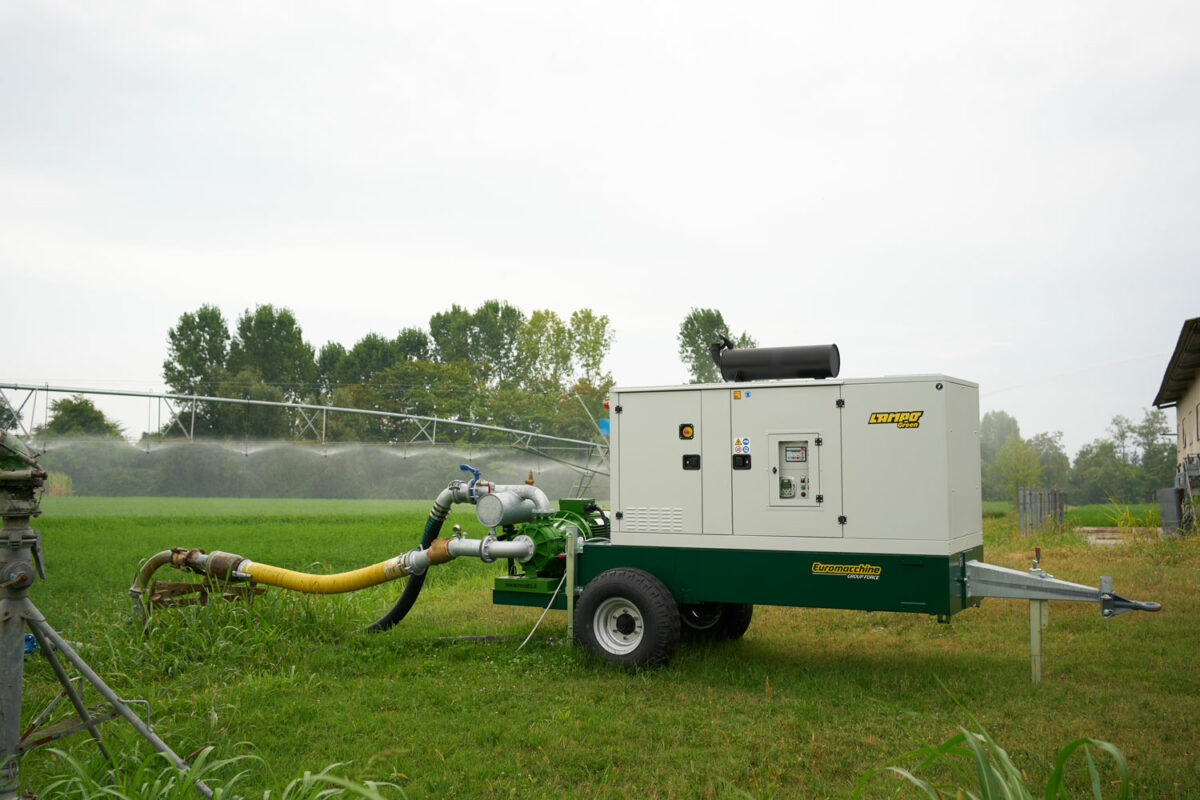

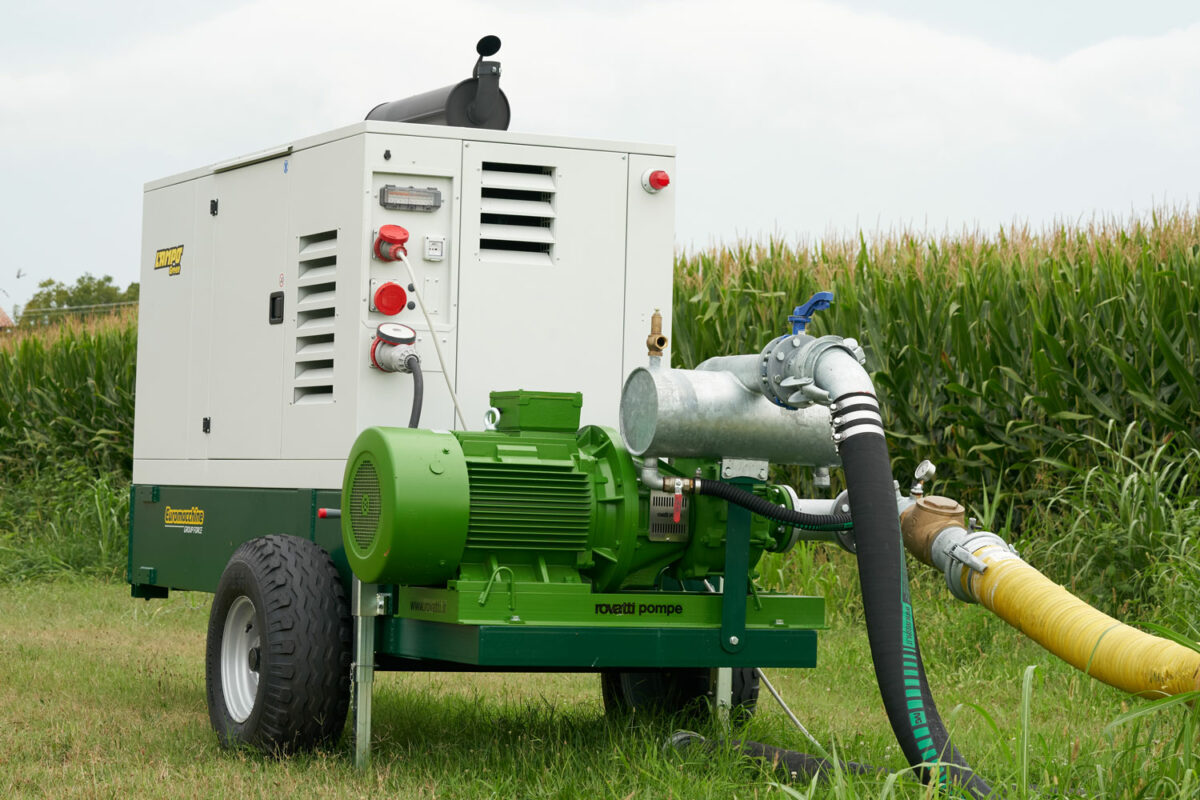

Lampo AG is the irrigation system designed to ensure efficiency, reliability, and uncompromising performance. Perfectly suited to the needs of farmers and industry professionals, Lampo represents the ideal combination of cutting-edge technology and ease of use.
Lampo AG offers standard solutions as part of its series, making it a complete and efficient machine. Additionally, accessories and secondary components are available to customize it for the most specific needs.
You can choose the priming system that suits you best. We offer a wide range of priming systems to select from, based on your specific needs.
This innovative system assists in priming the pump by suctioning the liquid from the suction pipe using the vacuum created. In this case, the system does not require a foot valve but needs a valve on the discharge pipe to generate the vacuum for suction. The system can be operated manually or in an automatic version. In the latter case, the electric pump unit starts automatically once filling is complete.
E-self is a self-priming transfer electric pump that makes it easy to prime the pump unit using a 230Vac electric pump. It easily fills the suction pipe and the pump. This system requires a foot valve to enable priming.
Supertank is one of our priming systems for centrifugal pumps. It allows the pump unit to start with water inside the pump, thus preventing damage. An automatic version is available for those who need to start the machine remotely (only in combination with the CIM 136 or ComAp control units).
For our machines, we have selected the best control units available on the market. Various models and brands are available to perfectly suit your needs.
The Comap InteliGen 500 is an advanced control unit with a wide range of functions and a high-resolution display. Thanks to the WebSupervisor cloud application and the GPS receiver, the platform provides complete and fast control of your fleet of pump units from any connected mobile device. With WebSupervisor, it is possible to start, stop, monitor, and adjust the settings of the machines from miles away.
Engine speed indicators
Indicators for correct working point
ON/OFF switch
Timer based on operating hours
Absorbed power signals
Pump/motor protection
Event history
Anti-theft protection
The CIM 136 is the Elcos control unit for manual and automatic operation via external contact, equipped with an integrated GSM modem that allows remote control of the pump unit through an app. Without operator intervention, the CIM 136 automatically monitors all its parameters and alarms. Thanks to the actuator, it can perform automatic adjustments to maintain constant irrigation pressure.
Protection activation
Automatic monitoring anomalies
Automatic acceleration and deceleration
Electronic water pressure transmitter
Emergency stop
Timer to start or stop
Pump protection exclusion
GSM modem for remote control
Elcos control unit for combined operation of generator set and irrigation pump with all possible digital devices and alarms on LCD display.
Hour meter and tachometer
Pump water pressure control
Automatic anomaly monitoring with messages
Pump water pressure gauge
Pump water protection bypass
