Multifunctional units

Lampo EM / Cornell Pump

Lampo EM / Cornell Pump

Versatility, reliability, and ease of use are the key features that make Lampo Emergency the ideal solution for handling any emergency situation.

Lampo EM / Cornell Pump
Max Flow
Max Flow
500 m3/h
Max power
Max power
200 kVA
Max lighting
Max lighting
160000 lm
ALL IN ONE

THE MULTIFUNCTIONAL SOLUTION FOR THE MOST CHALLENGING SITUATIONS.

The patented multifunctional Lampo Emergency unit can be used simultaneously as a generator, lighting tower, and pump, and is capable of varying flow rates and pressures through an inverter. LAMPO ensures water drainage with pumps ranging from 100 to 500 m³/h.

    INFO AND CURVES

    TECHNICAL SPECIFICATIONS

    Model Gen set Pump Trailer
    Type Gen set Power [kVA] Max Flow [m³/h] Max pressure [m] Impeller style Solids passagge [mm] S x D [mm] Power rating [mm] Max mass [kg] Axles
    ELA.020T.R150 20 400 16 Enclosed 76 150×150 11 2700 Double
    ELA.030T.R150 30 400 16 Enclosed 76 150×150 11 2700 Double
    ELA.060T.R150 60 500 21 Enclosed 76 150×150 22 3500 Double
    WHY CHOOSE LAMPO

    ITS FUNCTIONS

    Lampo Emergency has always been our flagship product for dealing with danger and emergency situations. Equipped with an electric pump controlled by a VFD, this multifunctional unit is the ideal solution in case of flooding. The lighting tower with LED lights illuminates the work area during blackouts, and the generator provides power supply. The unit also includes a compressor for operating external pneumatic tools and a road trailer.

      • Cornell_Pump

        Cornell Pump

        STANDARD
        Cornell pumps are used in a wide range of applications and are designed to deliver industry-leading efficiency. Thanks to low fuel consumption and reduced power requirements, significant energy savings can be achieved. Cornell pumps also stand out for unique features such as Redi Prime, which ensures automatic priming and re-priming of the pump.
      • run-dry-tm

        Run Dry™

        STANDARD
        Seal lubrication and cooling system that prevents dry running.
      • Redi_Prime_Cornell

        Redi Prime®

        OPTIONAL
        A patented, fully automated system for rapid priming or re-priming without constant monitoring. With oversized suctions, they deliver high flow, reduced friction losses, and enhanced suction lift, making them easily handle large solids and air/liquid mixtures. Redi-Prime also maintains premium hydraulic efficiency to reduce energy consumption.
      • Irrigazione-cornell-Cycloseal

        Cycloseal®

        STANDARD
        Cornell’s manure pumps come equipped with the patented Cycloseal sealing system, which leverages cyclonic action to extract solids and abrasive substances from the seal area while simultaneously purging air and gas pockets. This groundbreaking technology extends the lifespan of the seal.
      • energy-efficiency

        Energy Efficiency

        STANDARD
        Cornell Pumps are engineered to provide superior efficiency, surpassing industry standards. Depending on the operational conditions, such as operating hours, fuel type, and horsepower needed, you can save over $3,000 annually in energy costs. With over 35 models available, Cornell offers a wide range of IRRIGATION pumps that deliver best-in-class efficiency and meet or exceed optimum standards for centrifugal pumps.
      • materials-of-construction

        Materials of construction

        STANDARD
        Cornell irrigation pumps are fabricated with highquality materials, including cast iron, bronze fitted, or all-iron construction, to ensure longevity and durability. Optional materials are also available for applications that require resistance to abrasive or caustic substances. To further enhance performance and longevity, these pumps are designed with balanced impellers, heavy-duty shafts, replaceable shaft sleeves, and wear rings as standard features.
      • Gen_Set

        Gen-set

        STANDARD
        The strength of the Lampo lies in its ability to combine a pumping unit with a generator set, making it ideal also for providing electricity during blackouts. This dual functionality makes it an extremely versatile solution, suitable for meeting various operational needs. The electrical panel also includes Schuko, three-phase, and single-phase sockets.
      • Lighting_Tower_Lampo

        Lighting tower

        STANDARD
        The lighting tower, extendable up to 6 meters in height, is equipped with 4 high-performance LED lamps, capable of reaching a total luminous output of up to 160,000 lumens, ensuring optimal visibility during rescue operations.
      • Lampo-doppia-pompa-compressore

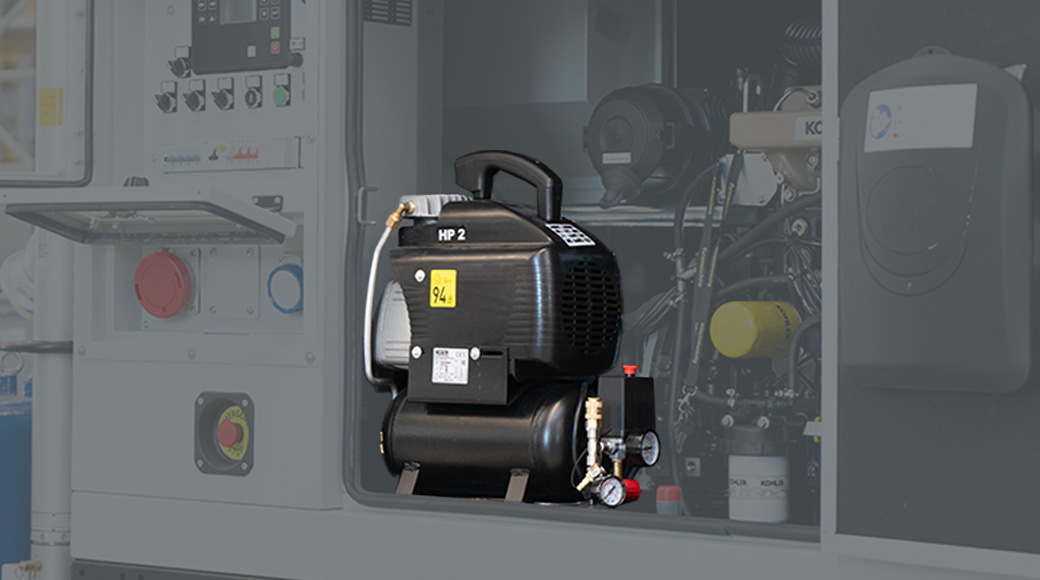

        Air compressor

        STANDARD
        For the pneumatic lifting of the lighting tower, Lampo is equipped with an integrated air compressor, which can also be used to power pneumatic tools in outdoor applications.
      • VFD

        VFD

        STANDARD
        The VFD adjusts the pump speed to vary the flow rate and head based on application requirements.
      • Grindex_Pump

        Submersible Pump Unit

        OPTIONAL
        Lampo EM comes equipped with one Grindex submersible drainage pump. The Milli model, thanks to its integrated non-return valve, is capable of suctioning liquid down to just a few millimeters.
      MUST-HAVES

      MAIN COMPONENTS AND ACCESSORIES

      Lampo Emergency offers standard features as part of its base configuration, making it a complete and efficient machine. Additionally, accessories and secondary components are available to customize it according to more specific needs.

        • Canopy_Trailer

          Soundproof Cabin

          STANDARD
          A version with a soundproof cabin is available, offering 70 d(B)A at a distance of 7 meters. It is made of galvanized, press-bent, and electro-welded steel, painted with epoxy powders, and lined internally with Class 1 sound-absorbing material.
        • Street_Trailer_Lampo

          Approved road trailer

          OPTIONAL
          Lampo Emergency is completed with an approved road trailer, available in single-axle or double-axle versions, with 2 or 4 side parking jacks, a jockey wheel mounted on the drawbar for manual movement, a spare wheel with cover, multifunction road signal lighting system, and side reflectors.
        • Accessories_Lampo

          Discharge and suction accessories

          STANDARD
          The Lampo is equipped with discharge and suction accessories that include coupling joints, a basement filter, and/or a slotted filter. These components allow for quick and safe intervention during emptying operations, proving essential in emergency situations such as floods.
        • Hose

          Hose holder

          STANDARD
          Supplied as standard, the discharge hose is always ready for use thanks to the dedicated hose holder, which ensures speed and convenience during every operation.
        • Pipe

          Pipe holder

          STANDARD
          Thanks to the integrated pipe holders, the Lampo always keeps the pipes readily available directly on the vehicle. An essential detail in case of emergencies, when speed is everything.
        • Tool_Box

          Tool box

          OPTIONAL
          The tool box allows for neat and secure storage of everything needed: from valves to hoses, up to an extra diesel canister. An indispensable accessory to tackle any operation with maximum efficiency.
        • Internal_External_Lights_Lampo

          Internal and external lights

          STANDARD
          The internal and external lights improve visibility and operational efficiency: the internal lights facilitate work inside the machine cabin, while the external lights ensure safe maneuvers even in total darkness or blackout conditions.
        • Battery_Charger

          Battery charger maintenance socket

          OPTIONAL
          An advanced microprocessor-controlled battery charger with automatic temperature compensation and unbeatable performance for lead-acid batteries from 1.2 to 110 Ah. This charger is capable of solving numerous battery-related issues and is ideal for the most demanding applications.
        FOR YOUR PUMP

        PRIMING SYSTEMS

        You can choose the priming system that suits you best. We offer a wide range of priming systems to select from, based on your specific needs.

          • Redi Prime Cornell

            Redi Prime

            AUTOMATIC

            Cornell Redi-Prime® is a patented, fully automated system for rapid priming or re-priming without constant monitoring. Redi-Prime also maintains premium hydraulic efficiency to reduce energy consumption. This priming system was designed utilizing a diaphragm vacuum pump to prevent water carry-over and contamination.

          THE BRAIN OF OUR MACHINES

          AVAILABLE CONTROL UNITS

          For our machines, we have selected the best control units available on the market. Various models and brands are available to perfectly suit your needs.

          COMAP InteliLite
