The Cornell brand, synonymous with quality and reliability, combined with engines of varying power, creates the most reliable and durable diesel pump.

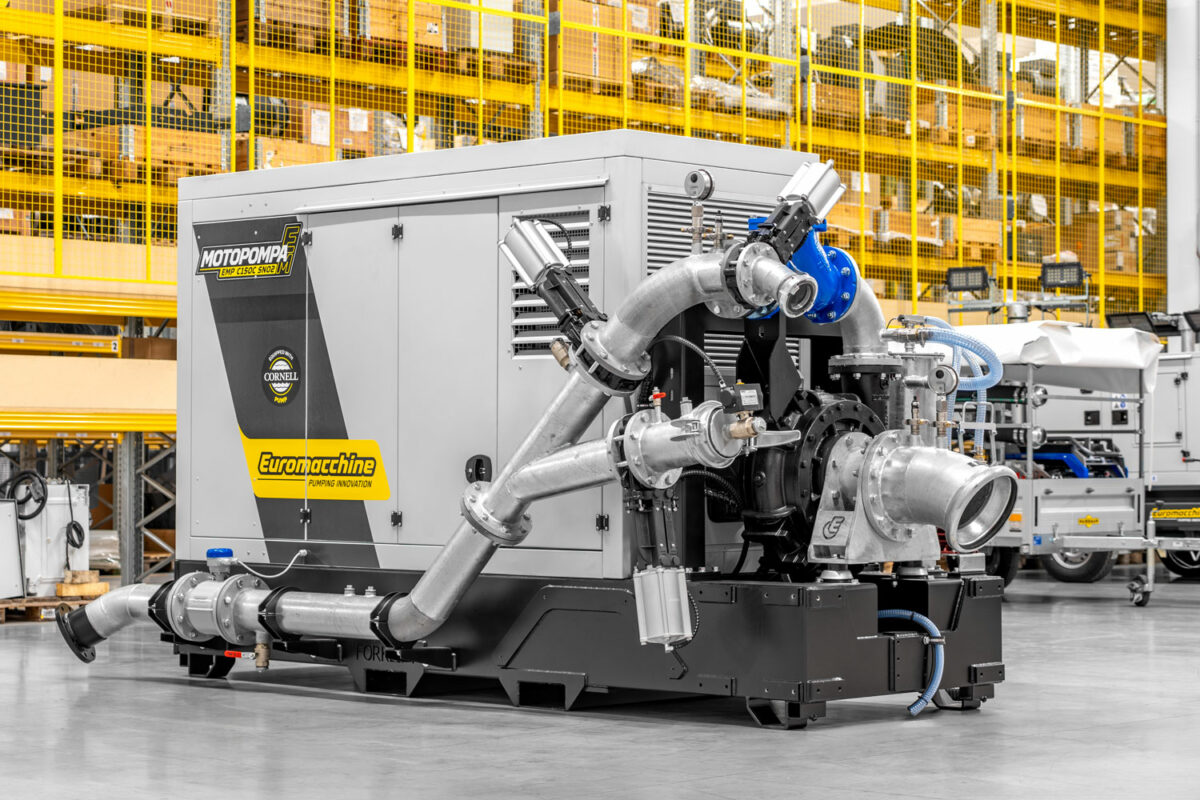

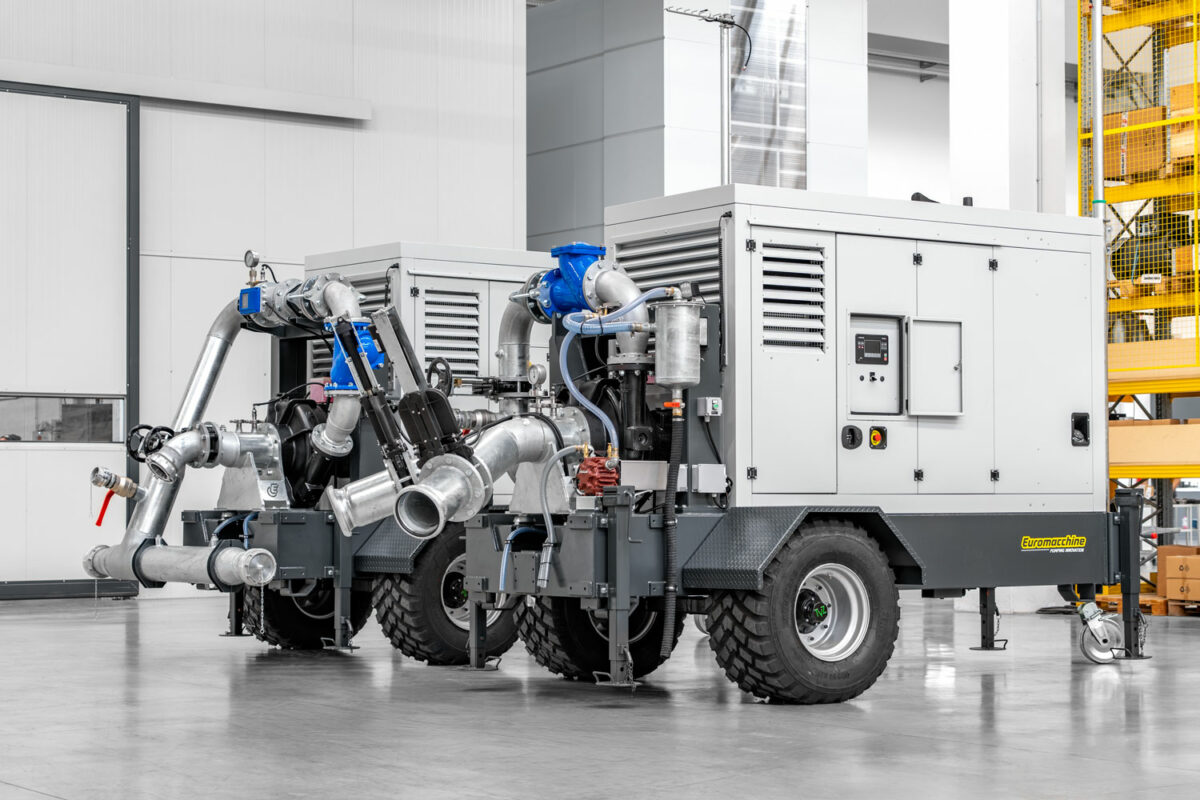

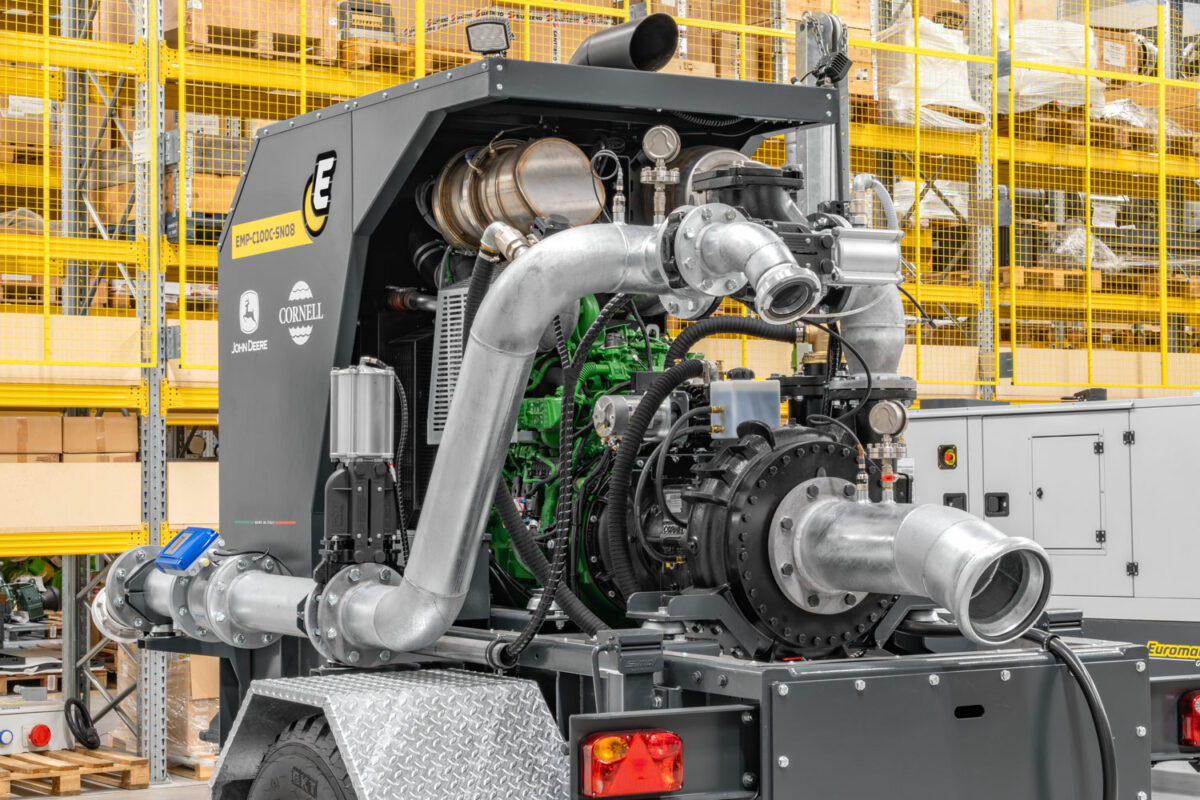

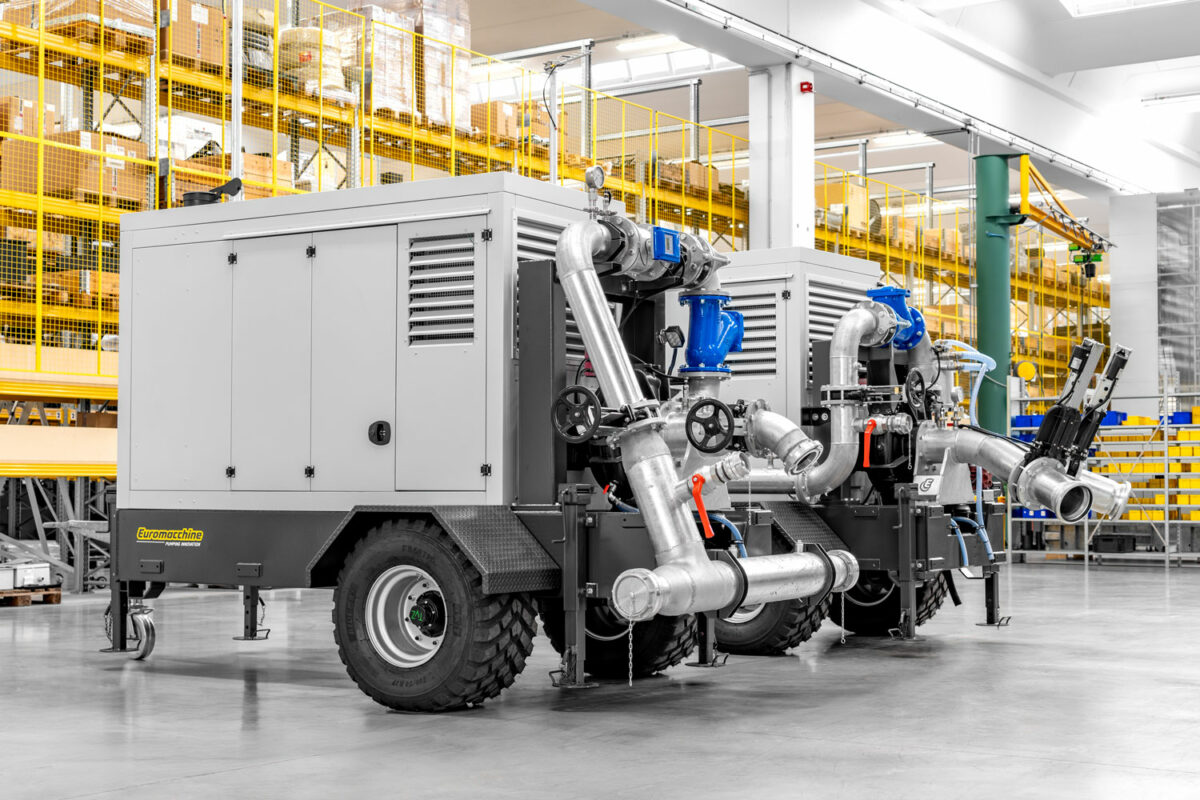

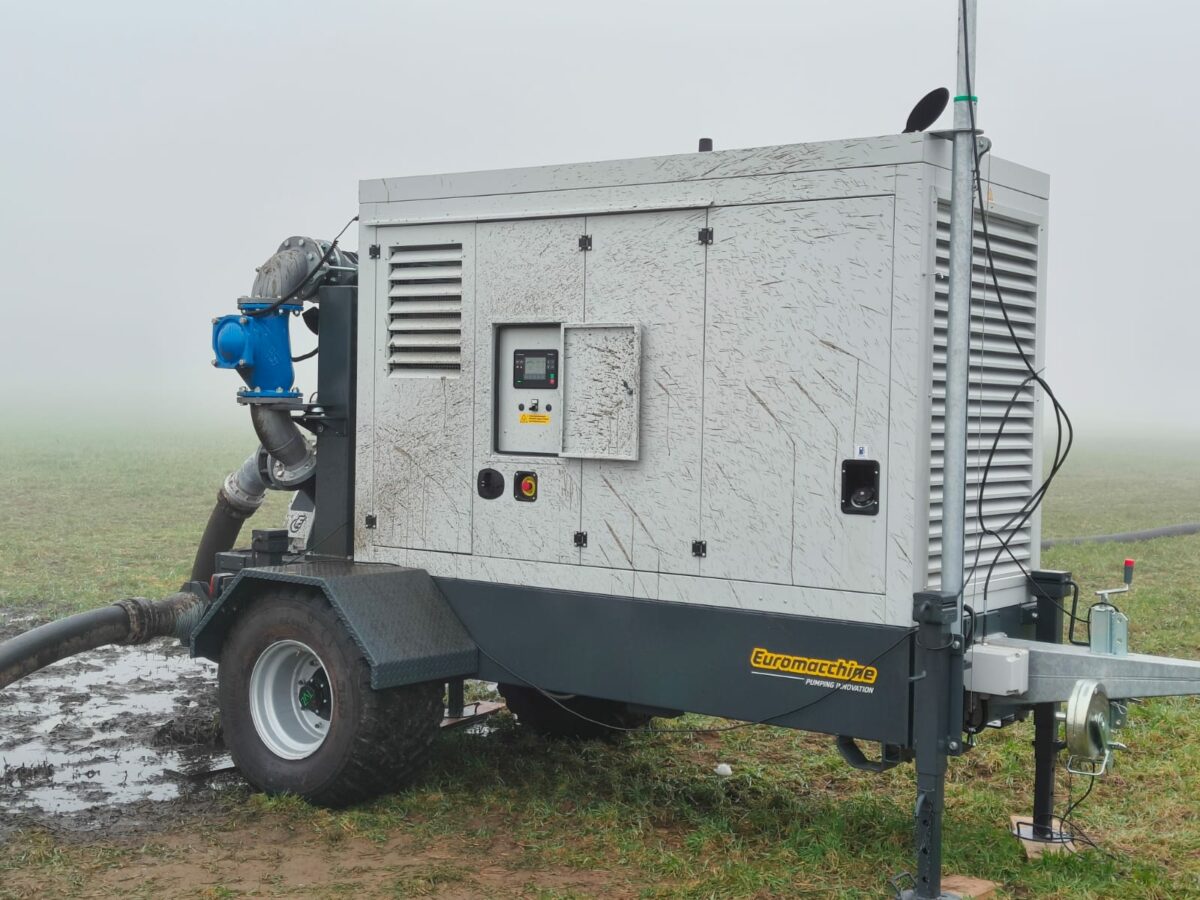

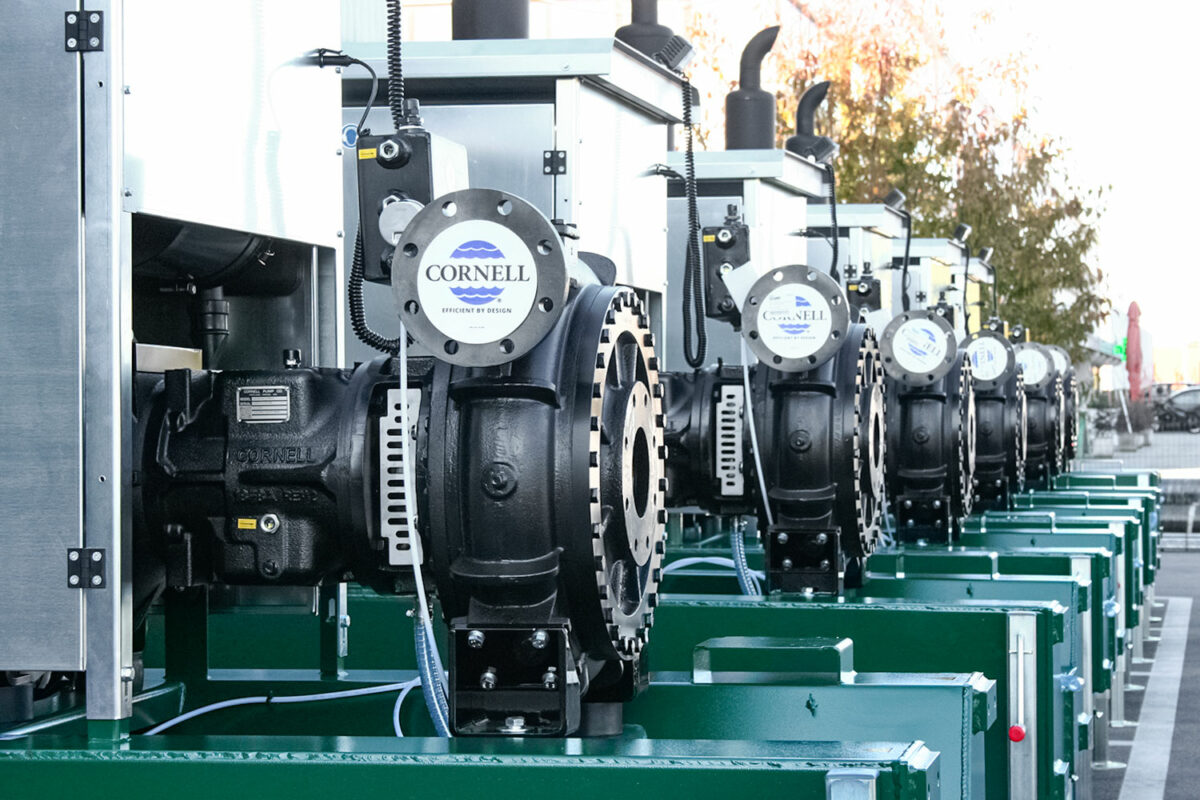

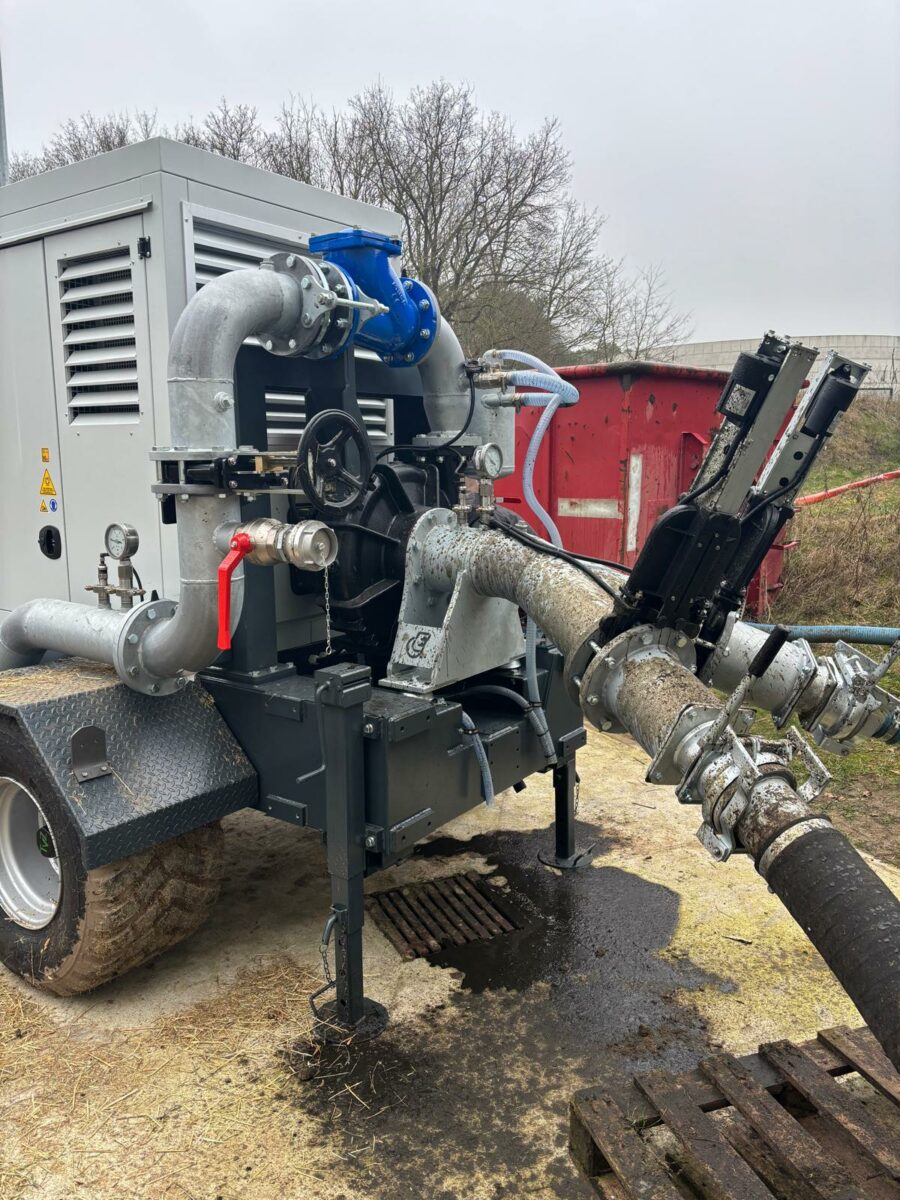

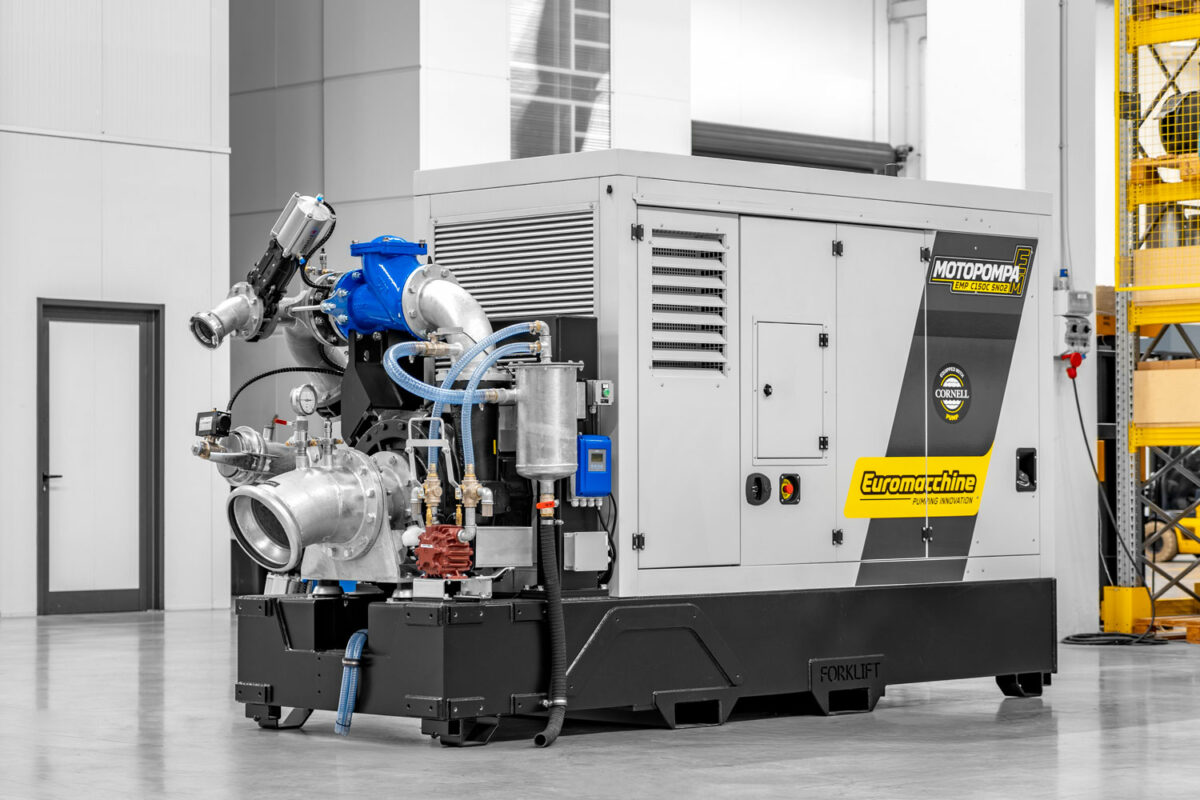

Euromacchine offers a wide range of engine-driven pumps specifically designed for use with umbilical systems during the manure spreading process. These pumps are commonly used in the agricultural sector for managing manure containing solid and abrasive particles, thanks to various types of impellers and a wide selection of construction materials. All Cornell solid-handling pumps are equipped with a robust support frame, easily recognizable for its angular and massive appearance, which represents a hallmark of Cornell pump quality.
| Model | Pump | |||||||
|---|---|---|---|---|---|---|---|---|
| Type | Brand | Model | Working point (mc/h @ m) | Efficiency (%) | Consumption (kW) | Solids Passagge Ø (mm) | S x D (mm) | Speed (Rpm) |
| 4-CN-200/120 | Cornell | 4NHTB | 200 @ 120 | 60% | 110 | 76 | 125×100 | 1800 |
| 4-CN-200/120MP | Cornell | 4517MP | 200 @ 120 | 61% | 106 | 76 | 150×100 | 1870 |
| 4-CN-300/120 | Cornell | 4NHTB | 300 @ 120 | 67% | 145 | 76 | 125×100 | 1800 |
| 4-CN-300/120MP | Cornell | 4517MP | 300 @ 120 | 67% | 145 | 76 | 150×100 | 1930 |
| 4-CN-350/120 | Cornell | 4NHTB | 350 @ 120 | 68% | 165 | 76 | 125×100 | 1800 |
| 4-CN-200/140 | Cornell | 4NHTB19 | 200 @ 140 | 57% | 140 | 51 | 200×100 | 1800 |
| 4-CN-300/140 | Cornell | 4NHTB19 | 300 @ 140 | 67% | 170 | 51 | 200×100 | 1800 |
| 4-CN-400/120MP | Cornell | 4817MP | 400 @ 120 | 67% | 196 | 76 | 200×100 | 1981 |
| 4-CN-400/140 | Cornell | 4NHTB19 | 400 @ 140 | 70% | 205 | 51 | 200×100 | 1800 |
| 6-CN-400/140MP | Cornell | 6819MP | 400 @ 140 | 67% | 225 | 51 | 200×150 | 1970 |
| 6-CN-400/130 | Cornell | 6NHTB19 | 400 @ 130 | 69% | 210 | 51 | 200×150 | 1900 |
| 6-CN-500/120 | Cornell | 6NHTB19 | 500 @ 120 | 71% | 230 | 51 | 200×150 | 1920 |
| 6-CN-500/140MP | Cornell | 6819MP | 500 @ 140 | 72% | 265 | 51 | 200×150 | 2021 |
Cornell has been manufacturing pumps for agriculture since 1946. Over the years, engineers have continuously improved their design and functionality. We develop both basic and fully equipped solutions, specifically designed for single-operator use.
The high durability and hydraulic efficiency of our diesel pumps make them one of the best choices for manure pumps. Additionally, thanks to well-stocked warehouses, we ensure fast and reliable customer support.
You can choose the priming system that suits you best. We offer a wide range of priming systems to select from, based on your specific needs.
Rotary vane pump mounted on an eccentric rotor for vacuum systems, designed for manure pumping systems. This system helps to prime the pump by suctioning the liquid from the suction pipe, utilizing the vacuum created, also thanks to the presence of a non-return valve on the discharge pipe. The system can be managed either manually or in automatic mode. In the latter case, the pump starts automatically once filling is complete.
For our machines, we have selected the best control units available on the market. Various models and brands are available to perfectly suit your needs.
The ComAp InteliGen 500 G2 control unit, available on our manure diesel pump, manages in an integrated way the sequence of operational phases that typically characterize a standard field fertilization session (manure distribution): – Centrifugal pump priming – Distribution/spreading – Stand-by – Cleaning (pipe cleaning using compressed air, with or without cleaning ball) Depending on the current operational phase and the data received from the sensors on the motor pump, the valves in each circuit are activated in the correct order and timing.
Automatic priming (optional)
Flow monitoring to prevent losses
Synchronized operation for pump in series
Distribution phase with pressure or engine speed control
Automatic cleaning circuit management
Remote software update
The CIM 136 is the Elcos control unit for manual and automatic operation via external contact, equipped with an integrated GSM modem that allows remote control of the pump unit through an app. Without operator intervention, the CIM 136 automatically monitors all its parameters and alarms. Thanks to the actuator, it can perform automatic adjustments to maintain constant irrigation pressure.
Protection activation
Automatic monitoring anomalies
Automatic acceleration and deceleration
Electronic water pressure transmitter
Emergency stop
Timer to start or stop
Pump protection exclusion
GSM modem for remote control
