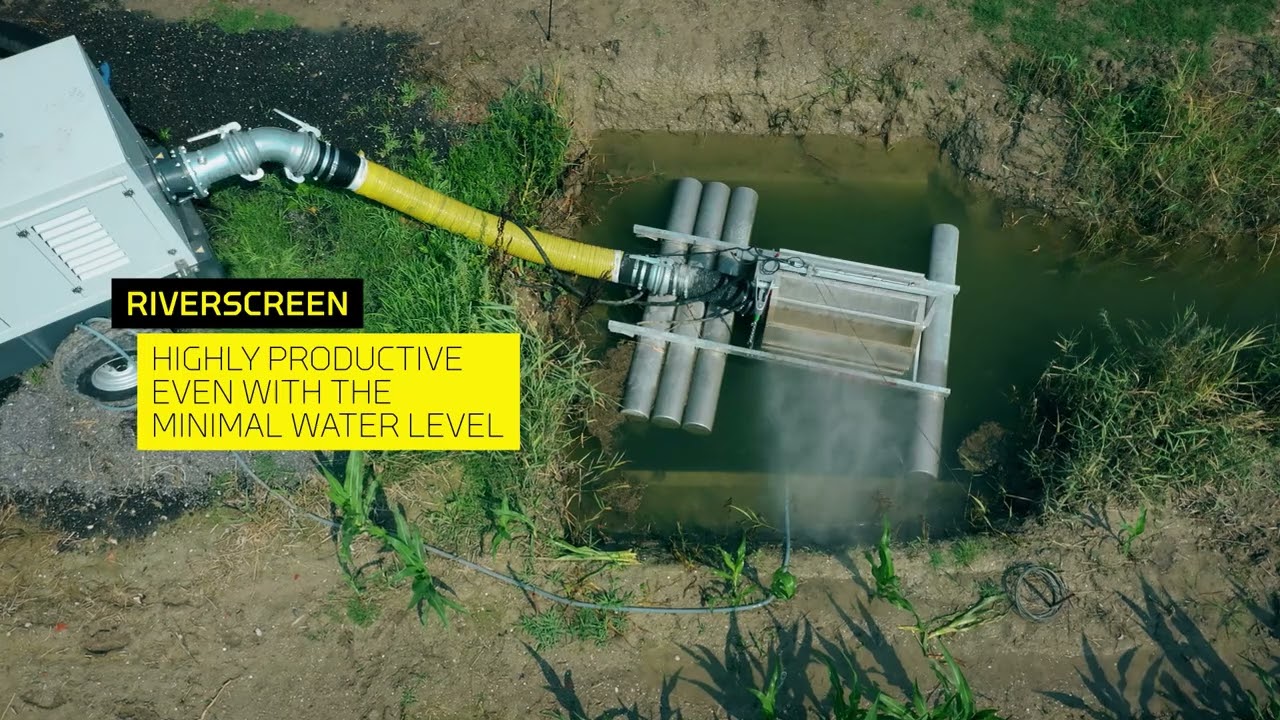

A self-cleaning rotary filter designed to ensure a constant supply of clean water from surface sources such as rivers, canals, and lakes, even with a minimum depth of 12 cm.
With its innovative design and advanced features, the Riverscreen ensures a reliable, debris-free water supply, minimizing maintenance issues and maximizing the efficiency of irrigation systems. The Riverscreen is ideal for irrigation systems relying on surface water sources, preventing issues related to sand and algae while ensuring a steady flow of clean water. It is also effective in settling ponds for manure, ensuring suction lines remain free of blockages. Available in models 4″, 6″, 8″, 10″, or 12″ to suit various suction needs.
| Model | Max flow | Pontoons | |||
|---|---|---|---|---|---|
| Sizes (inch) | (l/min) | (mc/h) | n° | Ø(inch) | L(m) |
| RVS STD 4″ | 1000 | 60 | 3+1 | 6” | 0,7 |
| RVS STD 6″ | 3000 | 180 | 3+1 | 10” | 2 |
| RVS STD 8″ | 4750 | 285 | 3+1 | 10” | 2,4 |
| RVS STD 10″ | 9500 | 570 | 3+1 | 10” | 3 |
| RVS STD 12″ | 15000 | 900 | 4+1 | 10” | 3 |
| RVS STD Tandem 12″ | 30000 | 1800 | 5+2 | 10″ | 3 |

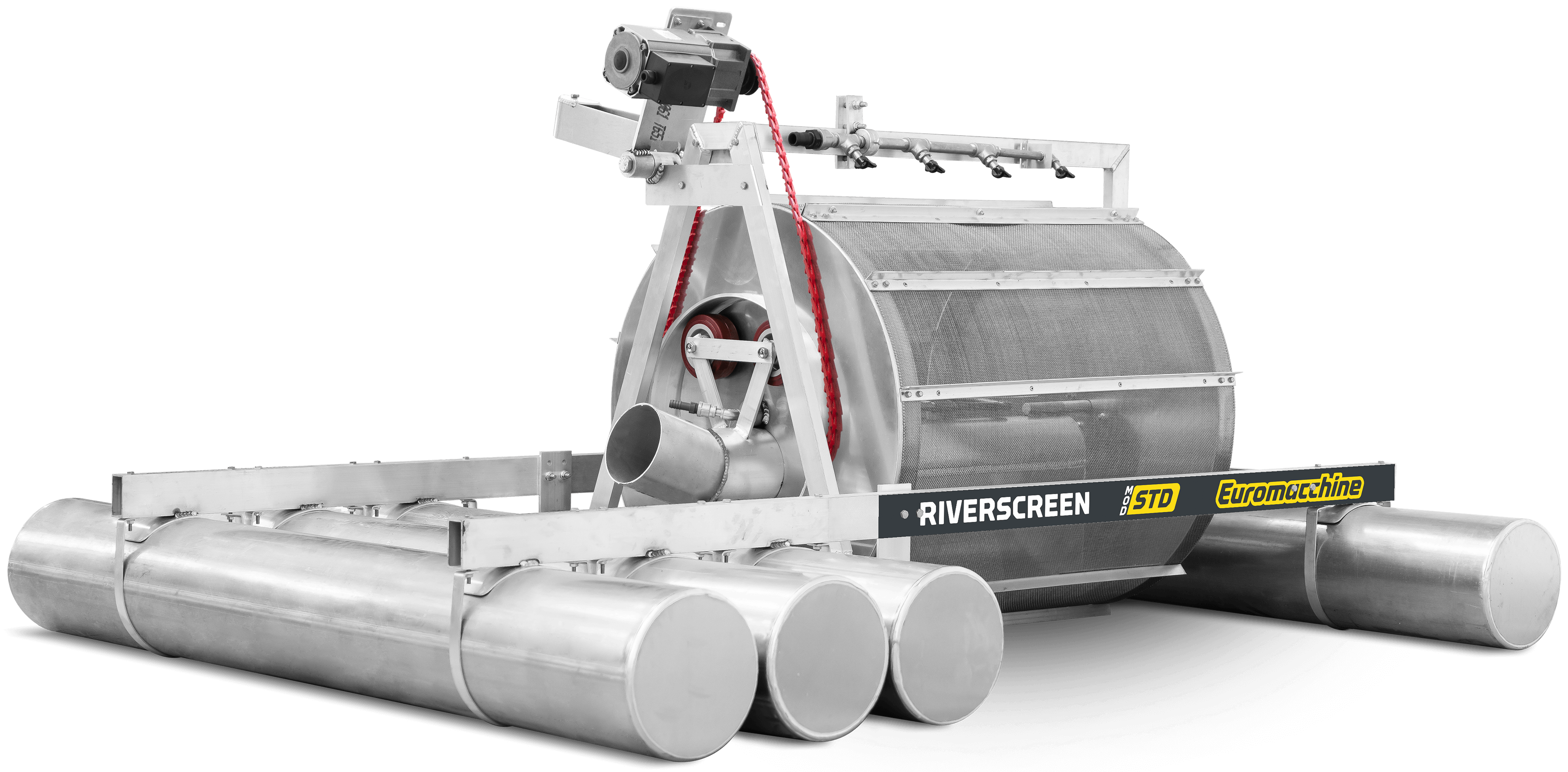

The Riverscreen is designed to ensure a constant flow of clean water from sources such as rivers, canals, and lakes. Its operation is made possible by a sophisticated nozzle system: the internal nozzles spray water outward to keep the basket free from algae, leaves, and other debris, while the external nozzles of the Water Driven PowerDrive system spray water onto the basket, allowing it to rotate. In low-flow conditions or other challenging situations, an electric motor (Motor Drive) can be added to ensure autonomous rotation of the basket. These features provide the end user with a fully independent system and minimize downtime caused by maintenance or cleaning.
The high efficiency and durability of our filtration systems make them one of the best choices for irrigation systems. Additionally, with highly stocked warehouses, we guarantee fast and reliable support for our customers.
